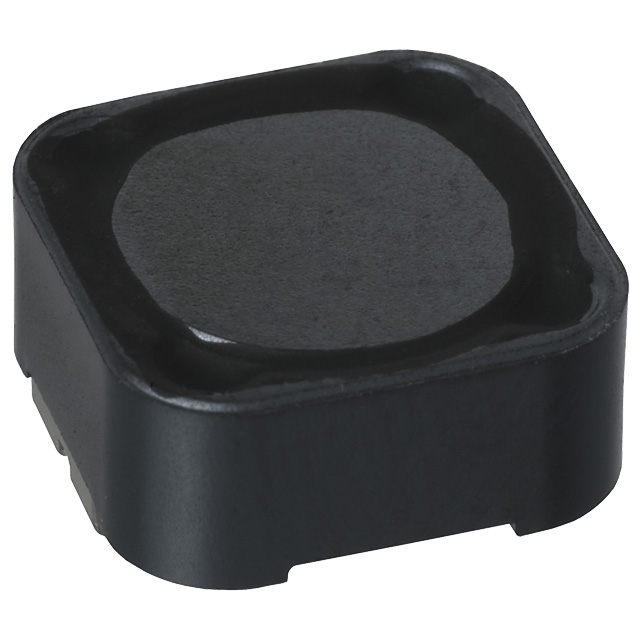

CDRH125NP-101MC

CDRH 系列 100 uH 20 % 容差 1.3 A 屏蔽 表面贴装 功率电感

100µH Shielded Inductor 1.3A 160mOhm Max Nonstandard

得捷:
FIXED IND 100UH 1.3A 160MOHM SMD

立创商城:
100uH ±20% 1.3A 120mΩ

艾睿:
This power CDRH125NP-101MC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 100 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 1.3 A with a maximum resistance of 160m Ohm. It has an inductance of 100u H. This product is 12.3 mm long, 6 mm tall and 12.3 mm deep. This device utilizes drum core technology. Its test frequency is 1K Hz. It has a tolerance of 20%.

安富利:
Ind Power Shielded Wirewound 100uH 20% 1KHz Ferrite 1.3A Carrier T/R

Chip1Stop:
Ind Power Shielded Wirewound 100uH 20% 1KHz Ferrite 1.3A Carrier T/R

Verical:
Inductor Power Shielded Drum Core 100uH 20% 1KHz Ferrite 2.28A 0.16Ohm DCR T/R

儒卓力:
**CDRH125 100uH 1300mA 20% WWT **
