CR54NP-100MC

CR 系列 10 uH 20 % 容差 1.44 A 表面贴装 电源指示灯

10µH Unshielded Wirewound Inductor 1.44A 100mOhm Max Nonstandard

得捷:
FIXED IND 10UH 1.44A 100MOHM SMD

立创商城:
10uH ±20% 1.44A 100mΩ

艾睿:

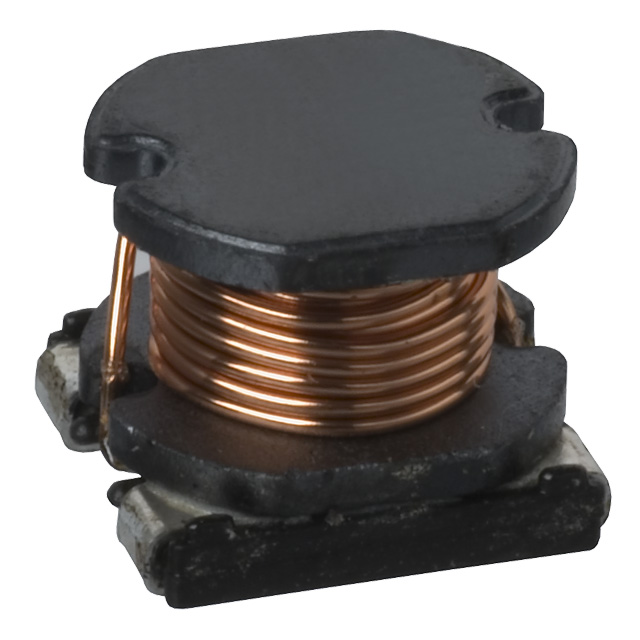

This power CR54NP-100MC surface mount inductor from Sumida Corporation is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 1.44 A with a maximum resistance of 100m Ohm. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 30.6MTyp Hz. It has a tolerance of 20%. It has an inductance of 10u H. This product is 6.1 mm long, 4.85 mm tall and 5.6 mm deep. This device is made with drum core technology.

安富利:
Ind Power Unshielded Wirewound 10uH 20% 2.52MHz Ferrite 1.44A Carrier T/R

富昌:
CR 系列 10 uH 20 % 容差 1.44 A 表面贴装 功率电感

Chip1Stop:
Ind Power Unshielded Wirewound 10uH 20% 2.52MHz Ferrite 1.44A Carrier T/R

Verical:
Inductor Power Unshielded Drum Core 10uH 20% 2.52MHz Ferrite 1.44A 100mOhm DCR T/R

儒卓力:
**CR54NP 10uH 1440mA 20% WWT **
