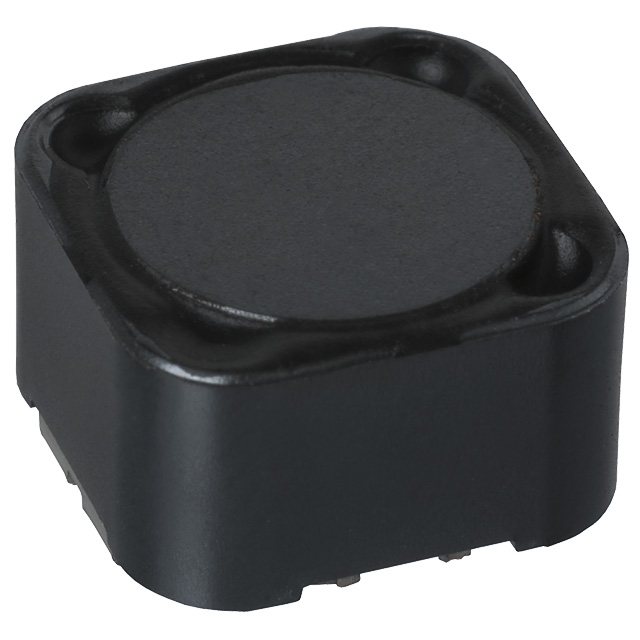

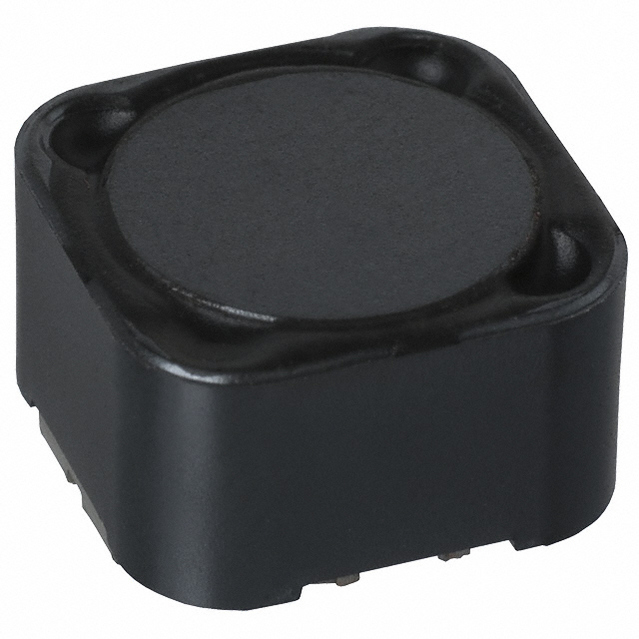

CDRH127NP-120MC

CDRH 系列 12 uH 20 % 容差 4.9 A 屏蔽 表面贴装 功率电感

屏蔽 - 器 24.3 毫欧最大 非标准

得捷:
FIXED IND 12UH 4.9A 24.3MOHM SMD

立创商城:
12uH ±20% 4.9A 18mΩ

艾睿:
This power CDRH127NP-120MC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with drum core technology. This SMD inductor has a maximum DC current of 4.9 A with a maximum resistance of 24.3m Ohm. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep. It has a tolerance of 20%. It has an inductance of 12u H. Its test frequency is 1K Hz.

安富利:
Ind Power Shielded Wirewound 12uH 20% 1KHz Ferrite 4.9A Carrier T/R

富昌:
CDRH 系列 12 uH 20 % 容差 4.9 A 屏蔽 表面贴装 电源指示灯

Chip1Stop:
Ind Power Shielded Wirewound 12uH 20% 1KHz Ferrite 4.9A Carrier T/R

Verical:
Inductor Power Shielded Drum Core 12uH 20% 1KHz Ferrite 5.8A 0.0243Ohm DCR T/R

儒卓力:
**CDRH127NP 12uH 4900mA 20% **
