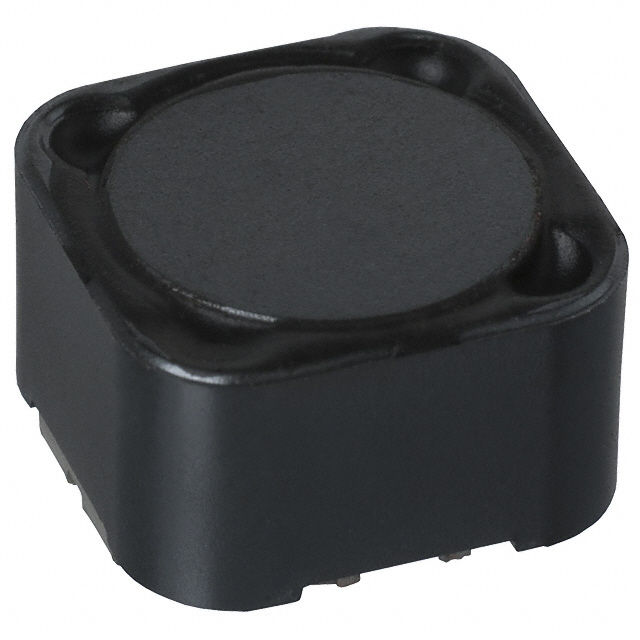

CDRH127/LDNP-100MC

CDRH 系列 10 uH 20 % 容差 6.7 A 屏蔽 表面贴装 电源指示灯

屏蔽 - 器 19.5 毫欧最大 非标准

得捷:
FIXED IND 10UH 6.7A 19.5MOHM SMD

立创商城:
10uH ±20% 6.7A 19.5mΩ

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power CDRH127/LDNP-100MC surface mount inductor from Sumida Corporation is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep. It has a tolerance of 20%. This device is made with drum core technology. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 6.7 A with a maximum resistance of 19.5m Ohm. It has an inductance of 10u H.

安富利:
Ind Power Shielded Wirewound 10uH 20% 1KHz Ferrite 6.7A Carrier T/R

Chip1Stop:
Ind Power Shielded 10uH 20% 1KHz 6.7A Carrier T/R

Verical:
Inductor Power Shielded Drum Core 10uH 20% 100KHz Ferrite 6.7A 19.5mOhm DCR T/R

儒卓力:
**CDRH127 10uH 6700mA 20% WWT **

Win Source:
10μH Shielded Inductor 6.7A 19.5 mOhm Max Nonstandard
