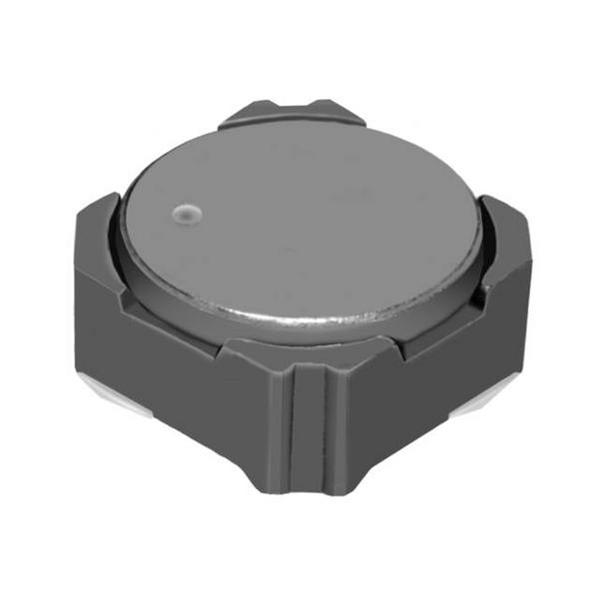

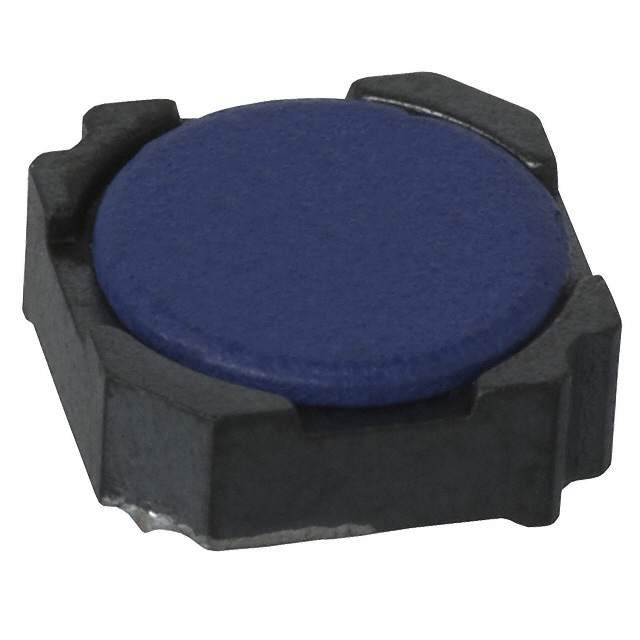

CDR 系列 10 uH 25 % 容差 2.4 A 屏蔽 表面贴装 功率电感
10 µH 屏蔽 - 器 2.5 A 53.8 毫欧最大 非标准
立创商城:
10uH ±25% 2.4A 48mΩ
得捷:
FIXED IND 10UH 2.5A 53.8MOHM SMD
贸泽:
固定电感器 10uh 2.5A
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power CDR7D28MNNP-100NC surface mount inductor from Sumida Corporation to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 100K Hz. This device utilizes drum core technology. It has an inductance of 10u H. This product is 7.6 mm long, 3 mm tall and 7.6 mm deep. This SMD inductor has a maximum DC current of 2.5 A with a maximum resistance of 53.8m Ohm.
安富利:
Ind Power Shielded Wirewound 10uH 25% 100KHz Ferrite 2.5A Carrier T/R
Chip1Stop:
Inductor Power Shielded Drum Core 10uH 25% 100KHz Ferrite 2.5A 53.8mOhm DCR Carrier T/R
Verical:
Inductor Power Shielded Drum Core 10uH 25% 100KHz Ferrite 2.5A 53.8mOhm DCR T/R
儒卓力:
**CDR7D28MNNP 10uH 1950mA 25% **
额定电流 2.5 A
容差 ±25 %
电感 10 µH
产品系列 CDR7D28MNNP
屏蔽 Yes
电感公差 ±25 %
测试频率 100 kHz
电阻DC) ≤53.8 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.0538 Ω
安装方式 Surface Mount
封装 Nonstandard
长度 7.3 mm
宽度 7.6 mm
高度 3 mm
封装 Nonstandard
重量 0.16 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
