固定电感器
固定器
得捷:
FIXED IND 15UH 4.5A 27 MOHM SMD
立创商城:
15uH ±20% 4.5A 20mΩ
贸泽:
Fixed Inductors 15uH 4.5A
艾睿:

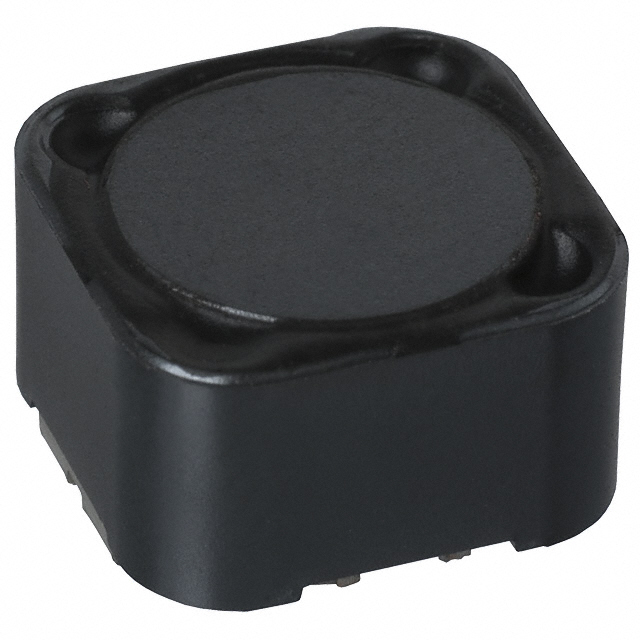

Save valuable space on a PCB with this power CDRH127NP-150MC surface mount inductor from Sumida Corporation. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 20%. It has an inductance of 15u H. This device is made with drum core technology. Its test frequency is 1K Hz. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep. This SMD inductor has a maximum DC current of 4.5 A with a maximum resistance of 27m Ohm.
Verical:
Inductor Power Shielded Drum Core 15uH 20% 1KHz Ferrite 5.5A 0.027Ohm DCR T/R
儒卓力:
**CDRH127NP 15uH 4500mA 20% WWT **
Win Source:
FIXED IND 15UH 4.5A 27 MOHM SMD
额定电流 4.5 A
容差 ±20 %
电感 15 µH
产品系列 CDRH127NP
屏蔽 Yes
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤27 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.027 Ω
安装方式 Surface Mount
封装 12.3 mm x 12.3 mm
长度 12.3 mm
宽度 12.3 mm
高度 8 mm
封装 12.3 mm x 12.3 mm
重量 3.6 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH127NP-150MC Sumida 胜美达 | 当前型号 | 当前型号 |
CDRH127-150MC 胜美达 | 功能相似 | CDRH127NP-150MC和CDRH127-150MC的区别 |
