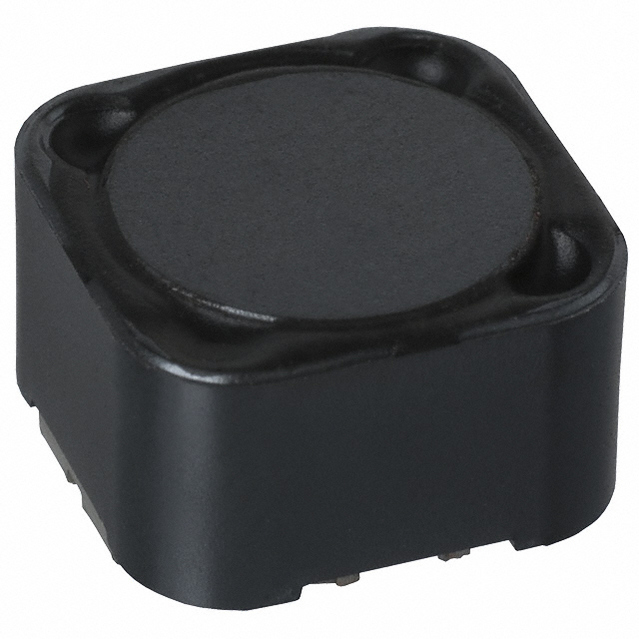

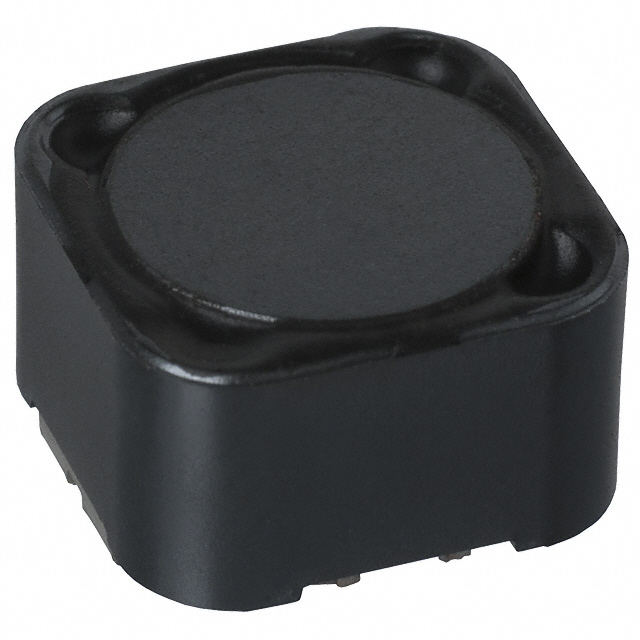

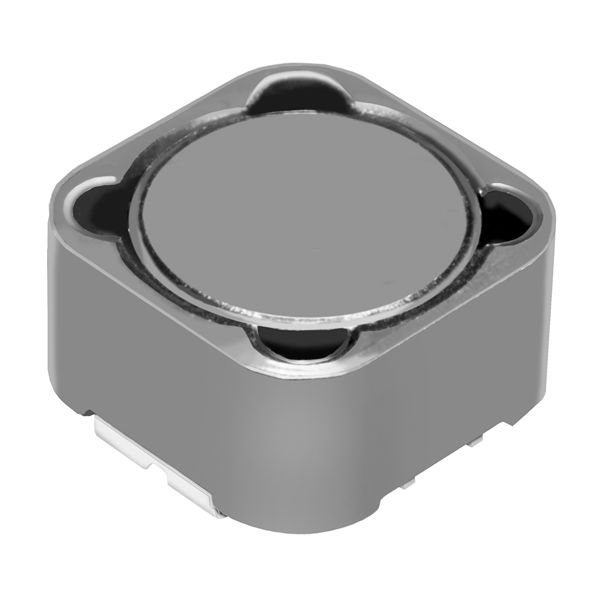

CDRH127/LDNP-150MC

CDRH127 系列 15 uH ±20% 5.65 A 26.4 mΩ DCR 屏蔽 功率 电感

15 µH 屏蔽 - 器 5.65 A 26.4 毫欧最大 非标准

得捷:
FIXED IND 15UH 5.65A 26.4MOHM SM

立创商城:
15uH ±20% 5.65A 20.3mΩ

艾睿:
This power CDRH127/LDNP-150MC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 100 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 100K Hz. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep. This device utilizes drum core technology. This SMD inductor has a maximum DC current of 5.65 A with a maximum resistance of 26.4m Ohm. It has a tolerance of 20%. It has an inductance of 15u H.

Chip1Stop:
Inductor Power Shielded Drum Core 15uH 20% 100KHz Ferrite 5.65A 26.4mOhm DCR Carrier T/R

Verical:
Inductor Power Shielded Drum Core 15uH 20% 100KHz Ferrite 5.65A 26.4mOhm DCR T/R

儒卓力:
**CDRH127/LDNP 15uH 5650mA 20% **
