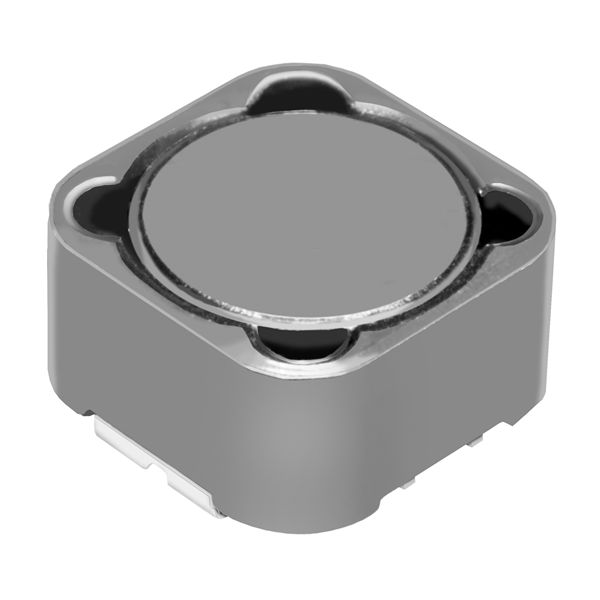

CDRH 系列 27 uH 20 % 容差 4.2 A 屏蔽 表面贴装 功率电感
屏蔽 - 器 41.6 毫欧最大 非标准
得捷:
FIXED IND 27UH 4.2A 41.6MOHM SMD
立创商城:
27uH ±20% 4.2A 32mΩ
贸泽:
Fixed Inductors 27uH 4.2A
艾睿:
Make any circuit look clean and compact using this power CDRH127/LDNP-270MC surface mount inductor from Sumida Corporation. This SMD inductor has an operating temperature range of -40 °C to 100 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 27u H. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep. It has a tolerance of 20%. Its test frequency is 100K Hz. This device utilizes drum core technology. This SMD inductor has a maximum DC current of 4.2 A with a maximum resistance of 41.6m Ohm.
Chip1Stop:
Ind Power Shielded 27uH 20% 1KHz 4.2A Carrier T/R
Verical:
Inductor Power Shielded Drum Core 27uH 20% 100KHz Ferrite 5.7A 0.0416Ohm DCR T/R
儒卓力:
**CDRH127 27uH 4200mA 20% WWT **
额定电流 4.2 A
容差 ±20 %
电感 27 µH
产品系列 CDRH127/LDNP
屏蔽 Yes
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤41.6 mΩ
工作温度Max 100 ℃
工作温度Min 40 ℃
电阻DC Max 41.6 mΩ
安装方式 Surface Mount
封装 12.3 mm x 12.3 mm
长度 12.3 mm
宽度 12.3 mm
高度 8 mm
封装 12.3 mm x 12.3 mm
重量 3.6 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH127/LDNP-270MC Sumida 胜美达 | 当前型号 | 当前型号 |
CDRH127/LDHF-270MC 胜美达 | 功能相似 | CDRH127/LDNP-270MC和CDRH127/LDHF-270MC的区别 |
