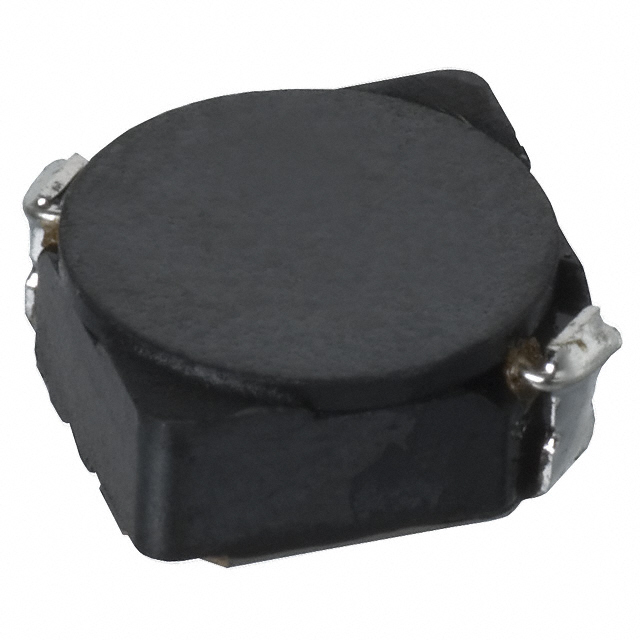

CDRH 系列 5 uH 30 % 容差 2.4 A 屏蔽 表面贴装 功率电感
5 µH 屏蔽 - 器 2.4 A 31 毫欧最大 非标准
得捷:
FIXED IND 5UH 2.4A 31 MOHM SMD
立创商城:
5uH ±30% 2.4A 23mΩ
贸泽:
Fixed Inductors 5uH 2.4A
艾睿:
This power CDRH6D28NP-5R0NC surface mount inductor from Sumida Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 2.4 A with a maximum resistance of 31m Ohm. This device is made with drum core technology. This product is 7 mm long, 3 mm tall and 7 mm deep. It has an inductance of 5u H.
安富利:
Ind Power Shielded Wirewound 5uH 30% 100KHz Ferrite 2.4A Carrier T/R
Chip1Stop:
Ind Power Shielded Wirewound 5uH 30% 100KHz Ferrite 2.4A Carrier T/R
Verical:
Inductor Power Shielded Drum Core 5uH 30% 100KHz Ferrite 2.4A 0.031Ohm DCR T/R
儒卓力:
**CDRH6D28NP 5,0uH 2400mA 30% WWT **
Win Source:
5μH Shielded Inductor 2.4A 31 mOhm Max Nonstandard
额定电流 2.4 A
容差 ±30 %
电感 5 µH
产品系列 CDRH6D28NP
屏蔽 Yes
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤31 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.031 Ω
安装方式 Surface Mount

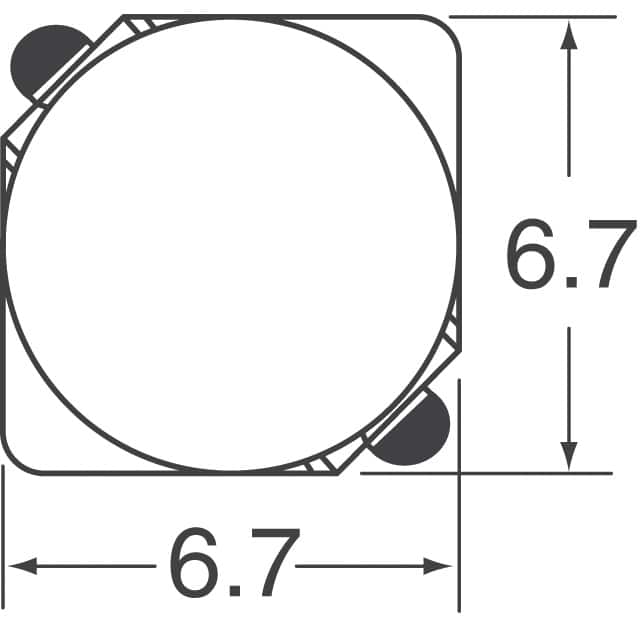

封装 7 mm x 7 mm
长度 7 mm
宽度 7 mm
高度 3 mm
封装 7 mm x 7 mm
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH6D28NP-5R0NC Sumida 胜美达 | 当前型号 | 当前型号 |
CDRH6D28-5R0NC 胜美达 | 功能相似 | CDRH6D28NP-5R0NC和CDRH6D28-5R0NC的区别 |
