100uH ±10% 520mA
100µH Unshielded Inductor 520mA 700mOhm Max Nonstandard
得捷:
FIXED IND 100UH 520MA 700MOHM SM
艾睿:

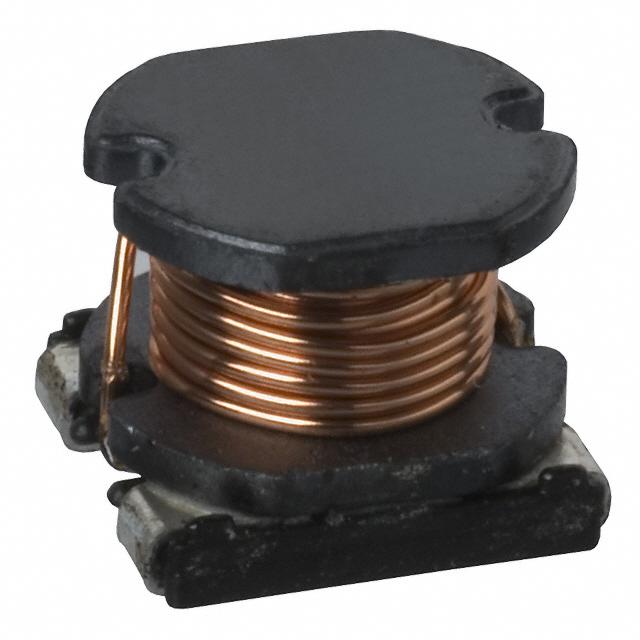

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power CR54NP-101KC surface mount inductor from Sumida Corporation to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 100 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 9.24MTyp Hz. This product is 6.1 mm long, 4.85 mm tall and 5.6 mm deep. It has an inductance of 100u H. It has a tolerance of 10%. This device utilizes drum core technology. This SMD inductor has a maximum DC current of 520m A with a maximum resistance of 700m Ohm.
富昌:
CR54 Series 100 uH ±10 % 0.52 A 0.7 Ohm Unshielded Surface Mount Power Inductor
Chip1Stop:
Inductor Power Unshielded Drum Core 100uH 10% 1KHz Ferrite 520mA 700mOhm DCR Carrier T/R
Verical:
Inductor Power Unshielded Drum Core 100uH 10% 1KHz Ferrite 520mA 700mOhm DCR T/R
儒卓力:
**CR54NP 100uH 520mA 10% WWT **
额定电流 520 mA
容差 ±10 %
电感 100 µH
自谐频率 9.24 MHz
产品系列 CR54NP
屏蔽 No
电感公差 ±10 %
测试频率 1 kHz
电阻DC) ≤700 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.7 Ω
安装方式 Surface Mount
封装 Non Standard
长度 5.8 mm
宽度 5.3 mm
高度 4.85 mm
封装 Non Standard
重量 0.41 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR54NP-101KC Sumida 胜美达 | 当前型号 | 当前型号 |
CD54NP-101KC 胜美达 | 功能相似 | CR54NP-101KC和CD54NP-101KC的区别 |
CR54-101KC 胜美达 | 功能相似 | CR54NP-101KC和CR54-101KC的区别 |
