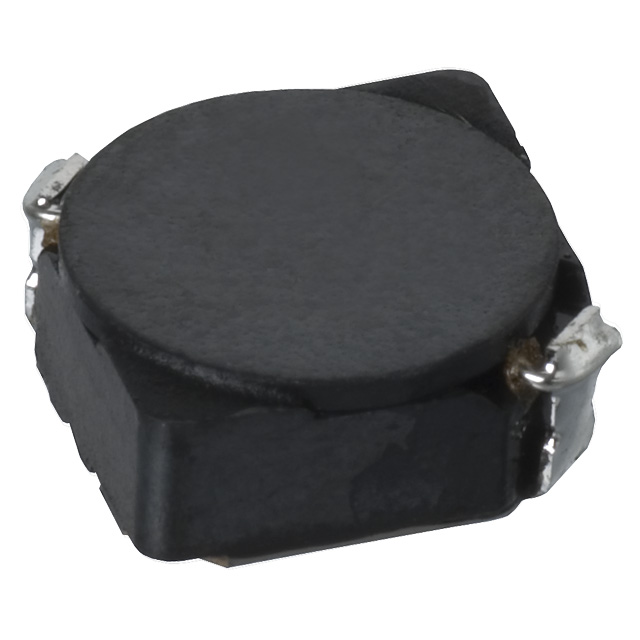

CDRH6D28NP-470NC

CDRH 系列 47 uH 30 % 容差 0.8 A 屏蔽 表面贴装 功率电感

47 µH 屏蔽 - 器 800 mA 238 毫欧最大 非标准

得捷:
FIXED IND 47UH 800MA 238MOHM SMD

立创商城:
47uH ±30% 800mA 176mΩ

艾睿:

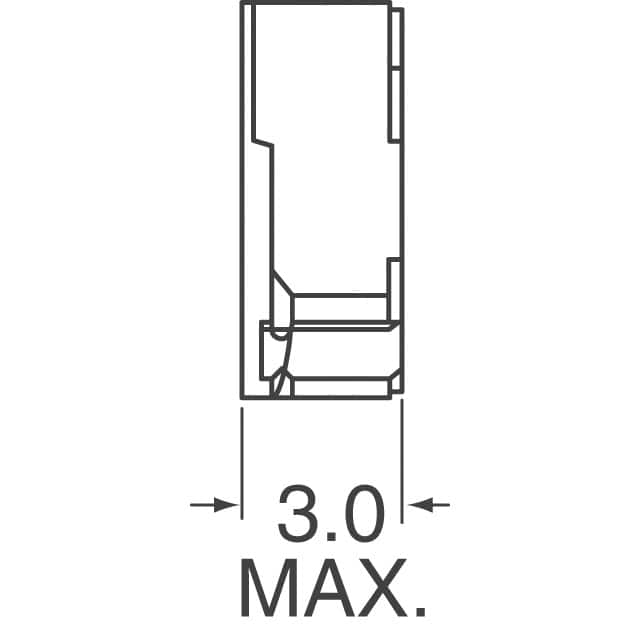

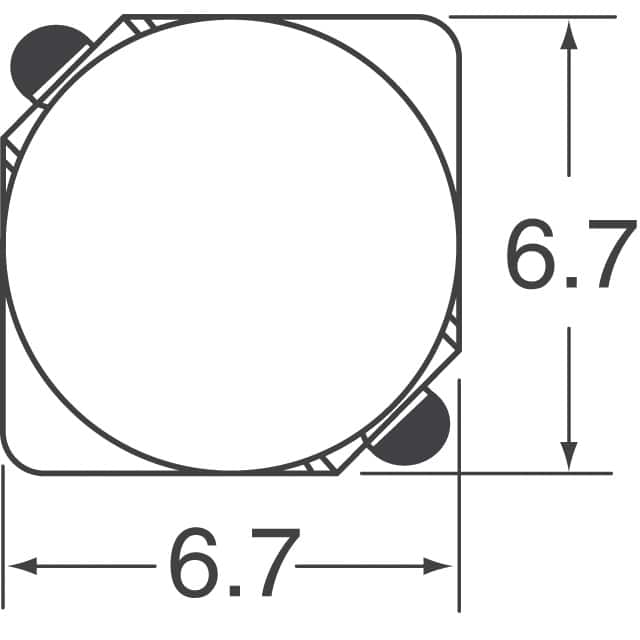

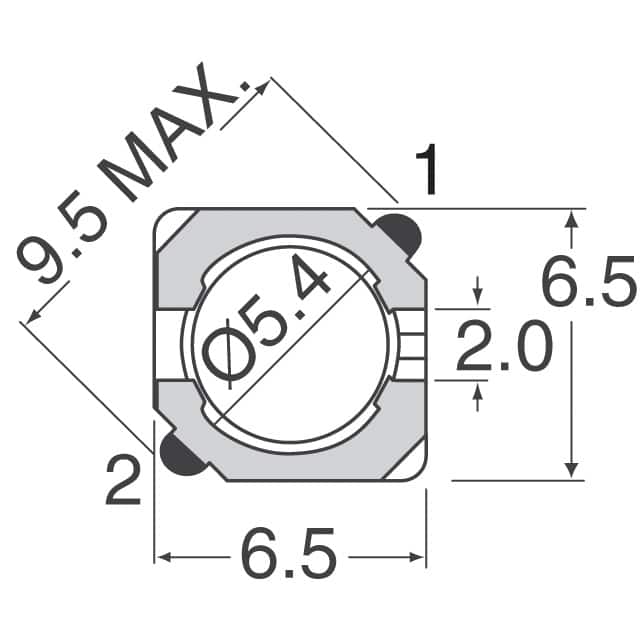

This power CDRH6D28NP-470NC surface mount inductor from Sumida Corporation is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 47u H. Its test frequency is 100K Hz. This product is 7 mm long, 3 mm tall and 7 mm deep. This device is made with drum core technology. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 238m Ohm.

安富利:
Ind Power Shielded Wirewound 47uH 30% 100KHz Ferrite 800mA Carrier T/R

Chip1Stop:
Ind Power Shielded Wirewound 47uH 30% 100KHz Ferrite 800mA Carrier T/R

Verical:
Inductor Power Shielded Drum Core 47uH 30% 100KHz Ferrite 0.8A 0.238Ohm DCR T/R

儒卓力:
**CDRH6D28NP 47uH 800mA 30% **
