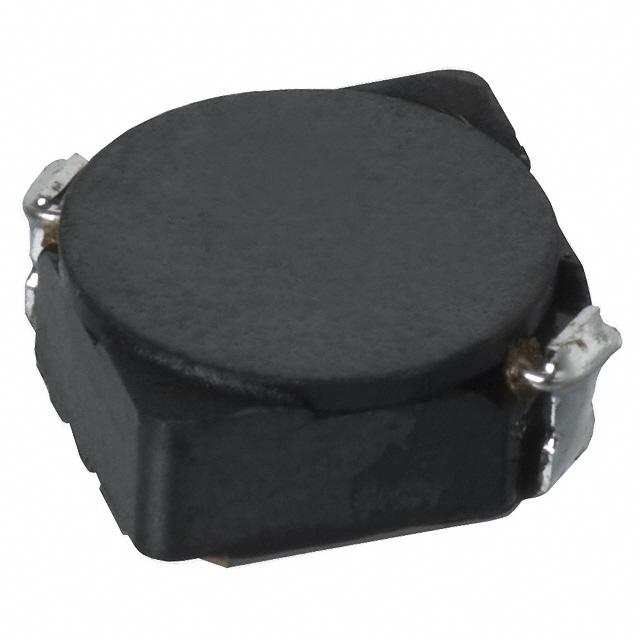

CDRH6D28NP-3R9NC

CDRH 系列 3.9 uH 30 % 容差 2.6 A 屏蔽 表面贴装 功率电感

3.9 µH 屏蔽 - 器 2.6 A 27 毫欧最大 非标准

立创商城:
3.9uH ±30% 2.6A 20mΩ

得捷:
FIXED IND 3.9UH 2.6A 27 MOHM SMD

艾睿:

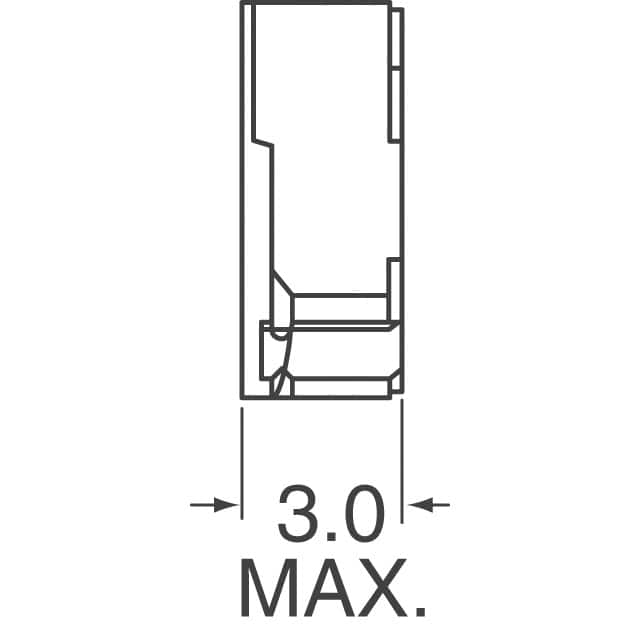

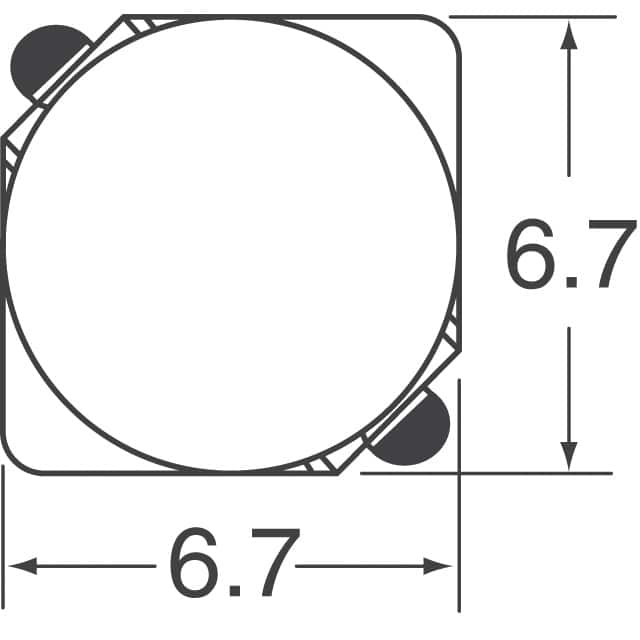

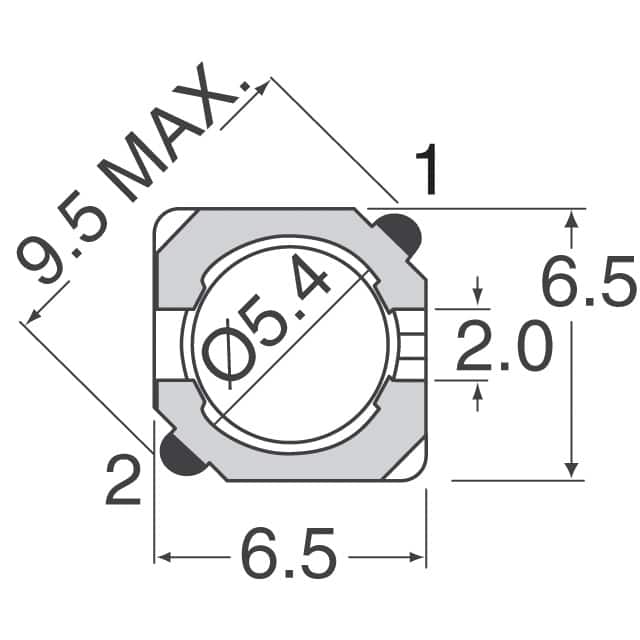

This power CDRH6D28NP-3R9NC surface mount inductor from Sumida Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 3.9u H. This product is 7 mm long, 3 mm tall and 7 mm deep. This SMD inductor has a maximum DC current of 2.6 A with a maximum resistance of 27m Ohm. Its test frequency is 100K Hz. This device is made with drum core technology.

Chip1Stop:
Ind Power Shielded Wirewound 3.9uH 30% 100KHz Ferrite 2.6A Carrier T/R

Verical:
Inductor Power Shielded Drum Core 3.9uH 30% 100KHz Ferrite 2.6A 27mOhm DCR T/R

Win Source:
FIXED IND 3.9UH 2.6A 27 MOHM SMD
