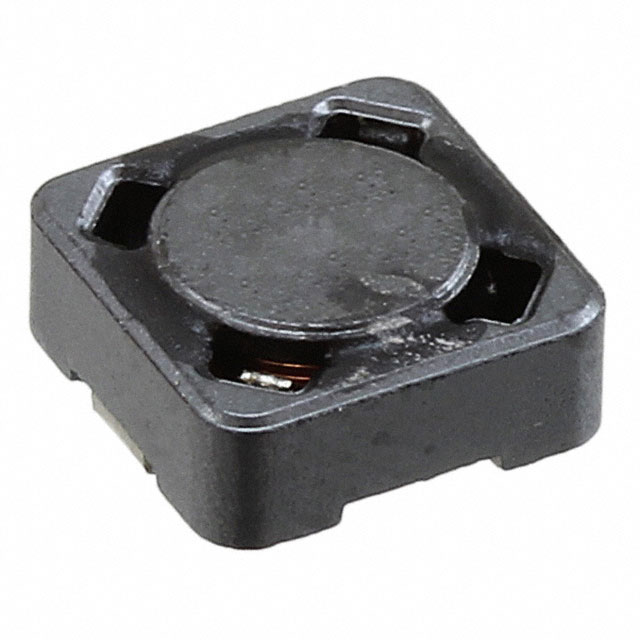

CDRH 系列 10 uH ±20 % 容差 1.68 A 表面贴装 屏蔽 功率 电感
10µH Shielded Inductor 1.68A 72mOhm Max Nonstandard
立创商城:
10uH ±20% 1.68A 55mΩ
得捷:
FIXED IND 10UH 1.68A 72 MOHM SMD
艾睿:
This power CDRH73NP-100MC-B surface mount inductor from Sumida Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. Its test frequency is 1K Hz. This product is 7.5 mm long, 3.4 mm tall and 7.5 mm deep. This device is made with drum core technology. This SMD inductor has a maximum DC current of 1.68 A with a maximum resistance of 72m Ohm. It has an inductance of 10u H.
安富利:
Ind Power Shielded Wirewound 10uH 20% 1KHz Ferrite 1.68A Carrier T/R
Verical:
Inductor Power Shielded Drum Core 10uH 20% 1KHz Ferrite 1.68A 0.072Ohm DCR T/R
儒卓力:
**CDRH73NP 10uH 1680mA 20% WWT **
额定电流 1.68 A
容差 ±20 %
电感 10 µH
测试频率 1 kHz
电阻DC) 72 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.072 Ω
安装方式 Surface Mount
封装 Non Standard
长度 7.5 mm
宽度 7.5 mm
高度 3.4 mm
封装 Non Standard
重量 0.63 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
