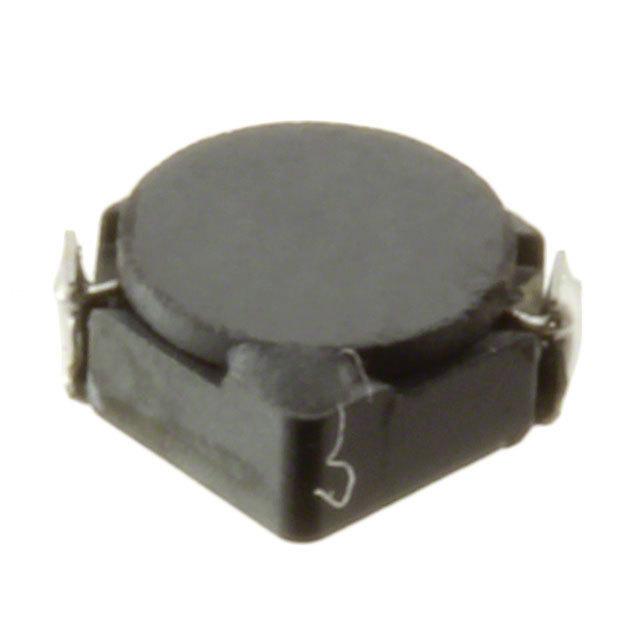

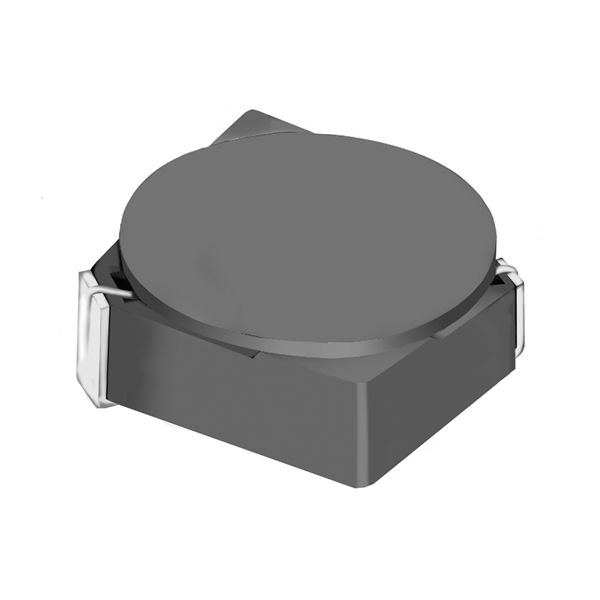

CDRH 系列 4.7 uH 30 % 容差 900 mA 屏蔽 表面贴装 功率电感
屏蔽 - 器 105 毫欧最大 非标准
得捷:
FIXED IND 4.7UH 900MA 105MOHM SM
立创商城:
4.7uH
艾睿:
This power CDRH3D16NP-4R7NC surface mount inductor from Sumida Corporation is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 100 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its test frequency is 100K Hz. This device utilizes drum core technology. This SMD inductor has a maximum DC current of 900m A with a maximum resistance of 105m Ohm. This product is 4 mm long, 1.8 mm tall and 4 mm deep. It has an inductance of 4.7u H.
富昌:
CDRH 系列 4.7 uH 30 % 容差 900 mA 屏蔽 表面贴装 电源指示灯
Chip1Stop:
Inductor Power Shielded Drum Core 4.7uH 30% 100KHz Ferrite 900mA 105mOhm DCR 1515 Automotive Carrier T/R
Verical:
Inductor Power Shielded Drum Core 4.7uH 30% 100KHz Ferrite 900mA 105mOhm DCR 1515 Automotive T/R
儒卓力:
**CDRH3D16NP 4,7uH 900mA 30% WWT **
Win Source:
4.7μH Shielded Inductor 900mA 105 mOhm Max Nonstandard
额定电流 900 mA
容差 ±30 %
电感 4.7 µH
产品系列 CDRH3D16NP
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤105 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.105 Ω
安装方式 Surface Mount
封装 1515
长度 4 mm
宽度 4 mm
高度 1.8 mm
封装 1515
重量 0.08 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
