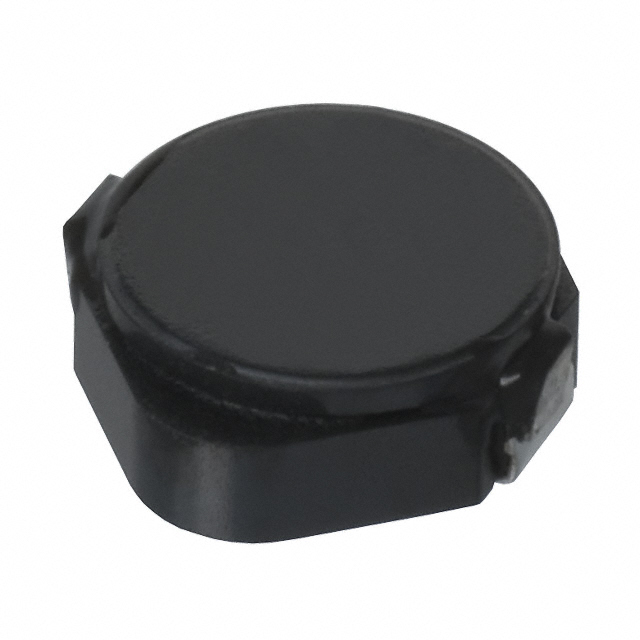

CDPH 系列 6.8 uH ±20% 3.02 A 屏蔽 表面贴装 功率电感
6.8 µH 屏蔽 - 器 3.02 A 50 毫欧最大 非标准
得捷:
FIXED IND 6.8UH 3.02A 50MOHM SMD
贸泽:
Fixed Inductors 6.8uH 1A 20% SMD LO PROFILE IND
艾睿:
Save valuable space on a PCB with this power CDPH4D19FNP-6R8MC surface mount inductor from Sumida Corporation. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. It has a tolerance of 20%. This device utilizes drum core technology. It has an inductance of 6.8u H. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 3.02 A with a maximum resistance of 50m Ohm.
安富利:
Ind Power Shielded Wirewound 6.8uH 20% 100KHz Ferrite 3.02A 2020 Carrier T/R
Chip1Stop:
Inductor Power Shielded Drum Core 6.8uH 20% 100KHz Ferrite 3.02A 50mOhm DCR 2020 Carrier T/R
Verical:
Inductor Power Shielded Drum Core 6.8uH 20% 100KHz Ferrite 3.02A 0.05Ohm DCR 2020 T/R
儒卓力:
**CDPH4D19FNP 6,8uH 3020mA 20% **
Win Source:
6.8μH Shielded Inductor 3.02A 50 mOhm Max Nonstandard
额定电流 3.02 A
容差 ±20 %
电感 6.8 µH
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤50 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.05 Ω
安装方式 Surface Mount
封装 2020

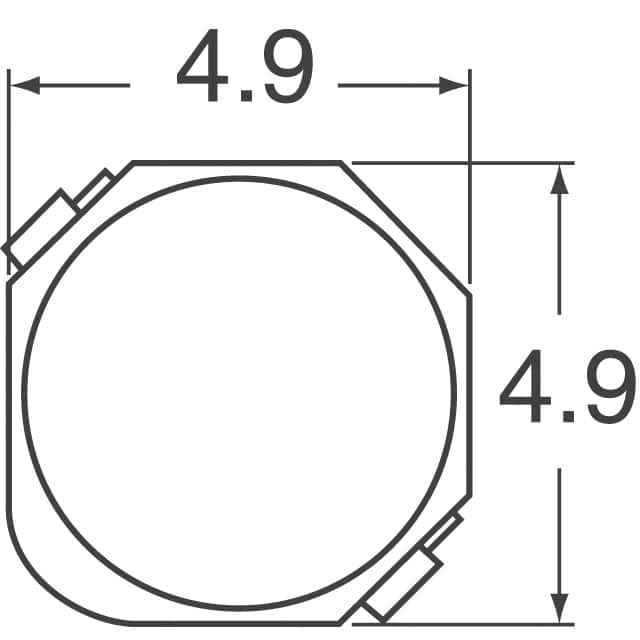

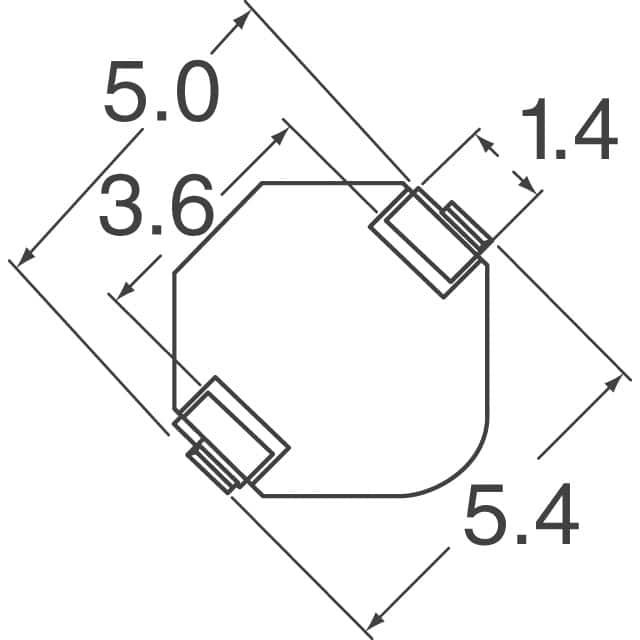

长度 5.2 mm
宽度 5.2 mm
高度 2 mm
封装 2020
重量 0.16 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
