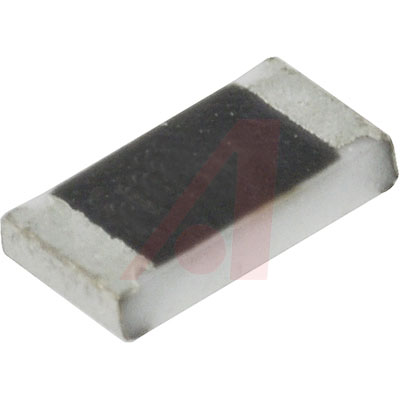

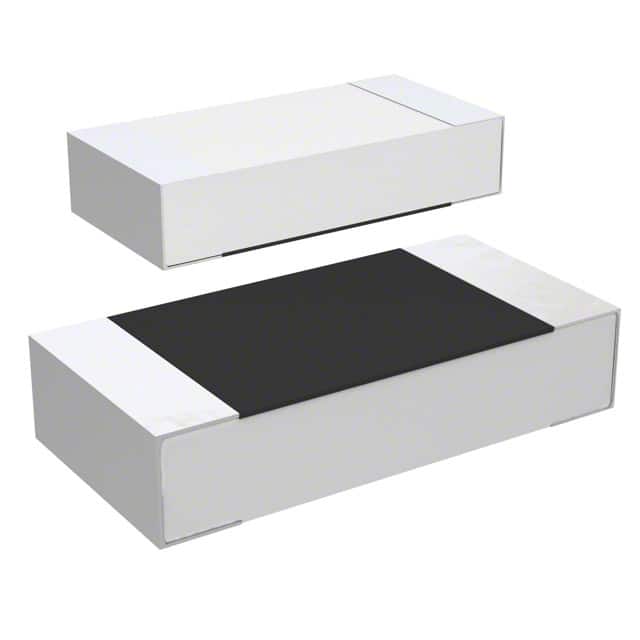

CRG1206F330K

Res Thick Film 1206 330KΩ 1% 0.25W1/4W ±100ppm/℃ Molded SMD SMD

Precious metal terminations are screen printed onto ceramic base and fired. The resistive element is screen printed and fired and the passivation layer added. Each resistor is trimmed to tolerance by laser. The pre-scribed tile is broken into strips, the end plating is fired on the strips broken into individual components. Final termination is made by electroplating.

**Features:**

* Thick Film Resistors with a High Power to Size Ratio, Ideally Suited to Industrial and General Purpose Use. A Range from 1 Ohm to 10 Megohms and Tolerances of 1% F and 5% J. Also Including Zero Ohms Links Z

* Suitable for Most Applications, Including High Frequency Operation, Owing to the Short Lead Structure and Low Capacitance
