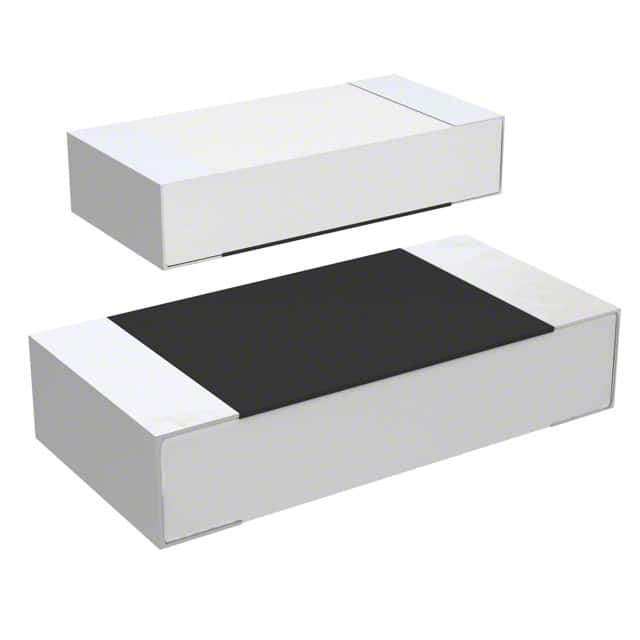

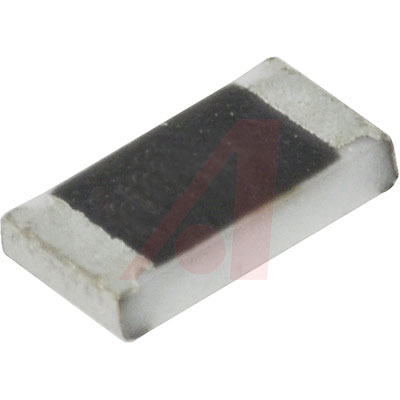

厚膜抵抗器 - SMD 390KOhms 1/4W 200V
Precious metal terminations are screen printed onto ceramic base and fired. The resistive element is screen printed and fired and the passivation layer added. Each resistor is trimmed to tolerance by laser. The pre-scribed tile is broken into strips, the end plating is fired on the strips broken into individual components. Final termination is made by electroplating.
**Features:**
* Thick Film Resistors with a High Power to Size Ratio, Ideally Suited to Industrial and General Purpose Use. A Range from 1 Ohm to 10 Megohms and Tolerances of 1% F and 5% J. Also Including Zero Ohms Links Z
* Suitable for Most Applications, Including High Frequency Operation, Owing to the Short Lead Structure and Low Capacitance
容差 ±1 %
额定功率 0.25 W
产品系列 CRG
电阻 390 kΩ
阻值偏差 ±1 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V

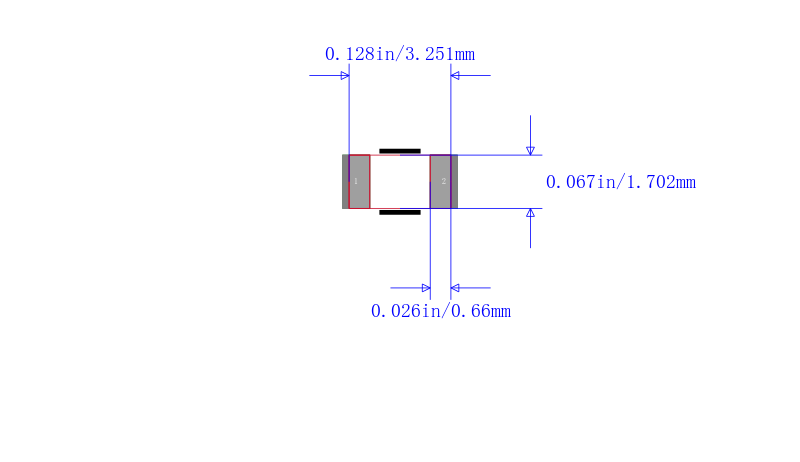

安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.1 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CRG1206F390K TE Connectivity 泰科 | 当前型号 | 当前型号 |
WR12X3903FTL 台湾华科 | 功能相似 | CRG1206F390K和WR12X3903FTL的区别 |
RC3216F394CS 三星 | 功能相似 | CRG1206F390K和RC3216F394CS的区别 |
