CDEP134NP-6R4MC

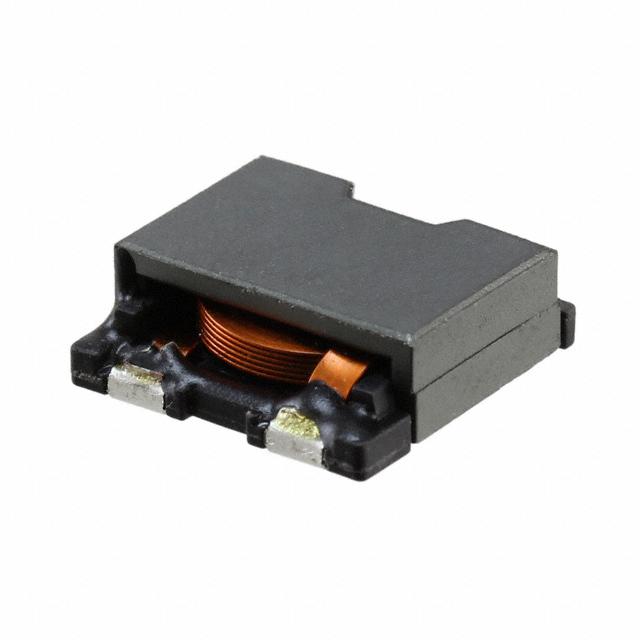

CDEP134NP-6R4MC图片1
CDEP134NP-6R4MC图片2
CDEP134NP-6R4MC图片3
CDEP134NP-6R4MC图片4
CDEP134NP-6R4MC概述

6.4uH ±20% 7A

6.4µH Shielded Inductor 7A 16.3mOhm Max Nonstandard


得捷:
FIXED IND 6.4UH 7A 16.3 MOHM SMD


艾睿:
Save valuable space on a PCB with this power CDEP134NP-6R4MC surface mount inductor from Sumida Corporation. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with wirewound technology. It has a tolerance of 20%. This product is 13.9 mm long, 4.9 mm tall and 13.9 mm deep. Its test frequency is 100K Hz. It has an inductance of 6.4u H. This SMD inductor has a maximum DC current of 7 A with a maximum resistance of 16.3m Ohm.


Chip1Stop:
Ind Power Shielded Wirewound 6.4uH 20% 100KHz Ferrite 7A Carrier T/R


CDEP134NP-6R4MC中文资料参数规格
技术参数

额定电流 7 A

电感 6.4 µH

产品系列 CDEP134NP

屏蔽 Yes

电感公差 ±20 %

电阻DC) 16.3 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.0163 Ω

封装参数

安装方式 Surface Mount

封装 0.547" L x 0.547" W x 0.193" H 13.90mm x 13.90mm x 4.90mm

外形尺寸

长度 13.9 mm

宽度 13.9 mm

高度 4.90 mm

封装 0.547" L x 0.547" W x 0.193" H 13.90mm x 13.90mm x 4.90mm

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CDEP134NP-6R4MC
型号: CDEP134NP-6R4MC
制造商: Sumida 胜美达
描述:6.4uH ±20% 7A
替代型号CDEP134NP-6R4MC
型号/品牌 代替类型 替代型号对比

CDEP134NP-6R4MC

Sumida 胜美达

当前型号

当前型号

CDEP134-6R4MC

胜美达

功能相似

CDEP134NP-6R4MC和CDEP134-6R4MC的区别
