CDRH3D28NP-220NC

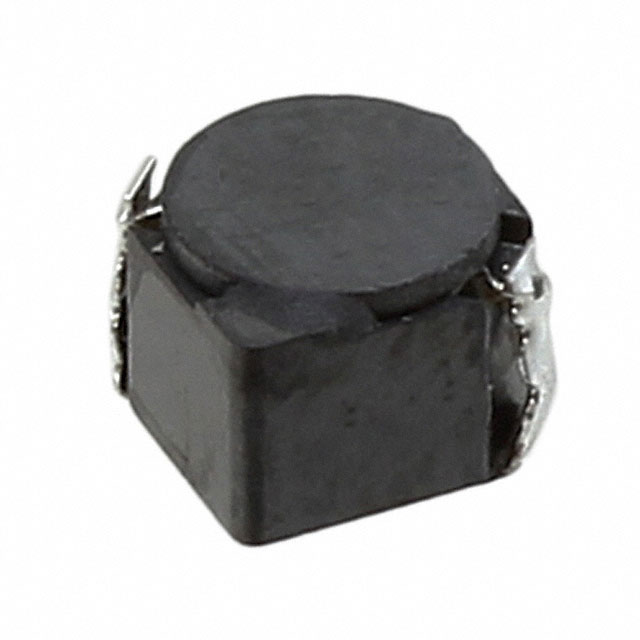

CDRH3D28NP-220NC图片1
CDRH3D28NP-220NC图片2
CDRH3D28NP-220NC图片3
CDRH3D28NP-220NC图片4
CDRH3D28NP-220NC概述

22uH ±20% 740mA 编带

屏蔽 - 器 335 毫欧最大 非标准


立创商城:
22uH ±20% 740mA 268mΩ


得捷:
FIXED IND 22UH 740MA 335MOHM SMD


艾睿:
This power CDRH3D28NP-220NC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 740m A with a maximum resistance of 335m Ohm. This device is made with drum core technology. Its test frequency is 100K Hz. This product is 4 mm long, 3 mm tall and 4 mm deep.


Chip1Stop:
Ind Power Shielded Wirewound 22uH 30% 100KHz Ferrite 740mA 1515 Carrier T/R


儒卓力:
**CDRH3D28NP 22uH 550mA 30% **


CDRH3D28NP-220NC中文资料参数规格
技术参数

额定电流 740 mA

电感 22 µH

产品系列 CDRH3D28NP

电感公差 ±30 %

测试频率 100 kHz

电阻DC) 335 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.335 Ω

封装参数

安装方式 Surface Mount

封装 1515

外形尺寸

长度 4.0 mm

宽度 4.0 mm

高度 3.00 mm

封装 1515

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CDRH3D28NP-220NC
型号: CDRH3D28NP-220NC
制造商: Sumida 胜美达
描述:22uH ±20% 740mA 编带
