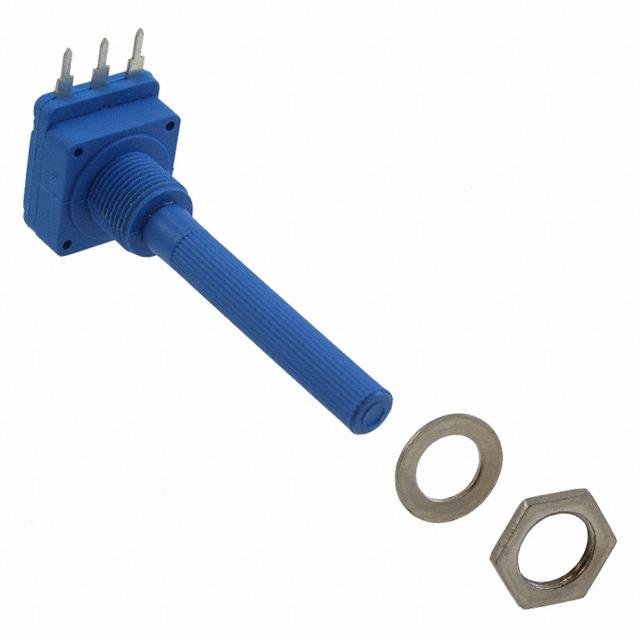

CP16SH10IP06103F

Res Carbon Film POT 10KΩ 20% 0.2W1/5W 1Elec/1MechTurn 6mm 53 X 20.5mm Pin Panel Mount/Through Hole

The TE connectivity CP16S linear potentiometer are single gang, spindle operated carbon potentiometers. These low cost potentiometers are used where high insulation resistance and voltage proof are key requirements. The material used in body and spindle construction make it an ideal component for domestic appliances and control systems where safety is of prime importance.

.

Single turn linear potentiometer

.

Resistance value ranges from 100 ohm to 4.7Mohm

.

Power rating of 0.2W at 40°C

.

±20%, ±10% and ±30% tolerance

.

Temperature coefficient is ±300ppm/°C< 100Kohm

.

High reliability and small versatile size

.

Plastic and metal shaft styles

.

Available in flatted and serrated shafts

.

Operating temperature range from -25°C to 70°C
