CDR 系列 8 uH 25 % 容差 2.6 A 屏蔽型 表面贴装 功率电感
屏蔽 - 器 50 毫欧最大 非标准
得捷:
FIXED IND 8UH 2.6A 50 MOHM SMD
艾睿:

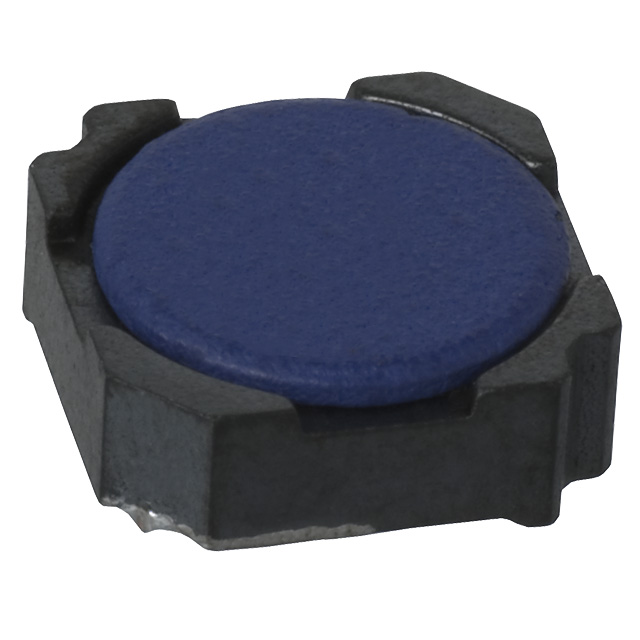

Use this power CDR7D28MNNP-8R0NC surface mount inductor from Sumida Corporation to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 100K Hz. It has an inductance of 8u H. This SMD inductor has a maximum DC current of 2.6 A with a maximum resistance of 50m Ohm. This product is 7.6 mm long, 3 mm tall and 7.6 mm deep. This device is made with drum core technology.
Chip1Stop:
Ind Power Shielded Wirewound 8uH 25% 100KHz Ferrite 2.6A Carrier T/R
额定电流 2.6 A
电感 8 µH
产品系列 CDR7D28MNNP
屏蔽 Yes
电感公差 ±25 %
电阻DC) 40 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.05 Ω
安装方式 Surface Mount

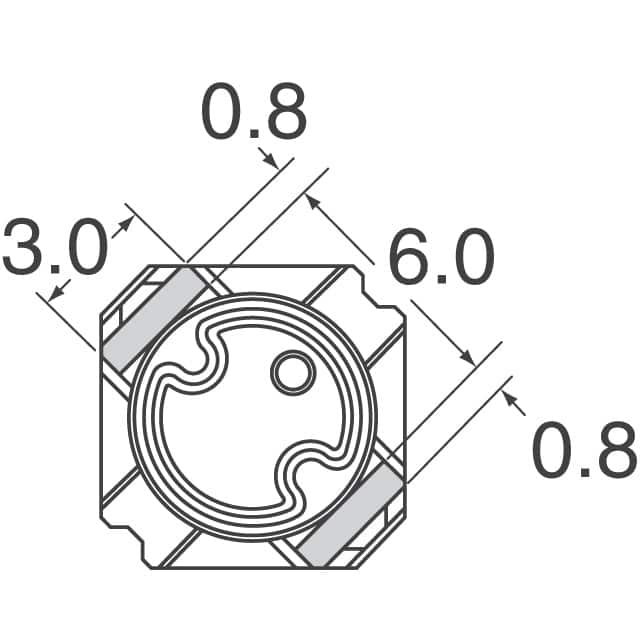

封装 0.299" L x 0.299" W x 0.118" H 7.60mm x 7.60mm x 3.00mm
长度 7.30 mm
宽度 7.3 mm
高度 3 mm
封装 0.299" L x 0.299" W x 0.118" H 7.60mm x 7.60mm x 3.00mm
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
