CEP125NP-4R3MC-U

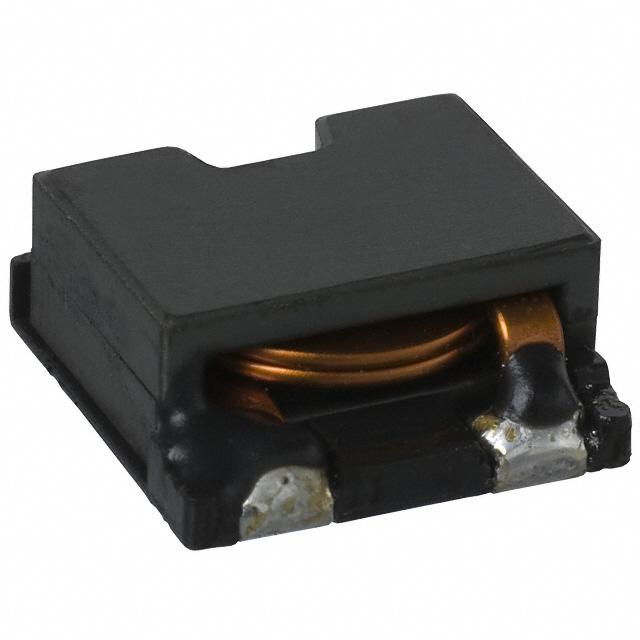

CEP125NP-4R3MC-U图片1
CEP125NP-4R3MC-U图片2
CEP125NP-4R3MC-U图片3
CEP125NP-4R3MC-U图片4
CEP125NP-4R3MC-U图片5
CEP125NP-4R3MC-U概述

Inductor Power Shielded Wirewound 4.3uH 20% 100kHz Ferrite 8.2A 11.4mOhm DCR Carrier T/R

4.3µH Shielded Wirewound Inductor 8.2A 11.4mOhm Max Nonstandard


得捷:
FIXED IND 4.3UH 8.2A 11.4MOHM SM


贸泽:
Fixed Inductors 4.3uH 11A Ultra Power


艾睿:
Save valuable space on a PCB with this power CEP125NP-4R3MC-U surface mount inductor from Sumida Corporation. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 8.2 A with a maximum resistance of 11.4m Ohm. It has a tolerance of 20%. It has an inductance of 4.3u H. This device is made with wirewound technology. Its test frequency is 100K Hz. This product is 12.9 mm long, 5.6 mm tall and 12.9 mm deep.


Chip1Stop:
Inductor Power Shielded Wirewound 4.3uH 20% 100KHz Ferrite 8.2A 11.4mOhm DCR Carrier T/R


儒卓力:
**CEP125NP 4,3uH 8,2A 20% WWT **


CEP125NP-4R3MC-U中文资料参数规格
技术参数

额定电流 8.2 A

容差 ±20 %

电感 4.3 µH

屏蔽 Yes

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤11.4 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 11.4 Ω

封装参数

安装方式 Surface Mount

封装 Non Standard

外形尺寸

长度 12.9 mm

宽度 12.9 mm

高度 5.6 mm

封装 Non Standard

物理参数

重量 2.7 g

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CEP125NP-4R3MC-U
型号: CEP125NP-4R3MC-U
制造商: Sumida 胜美达
描述:Inductor Power Shielded Wirewound 4.3uH 20% 100kHz Ferrite 8.2A 11.4mOhm DCR Carrier T/R
