CDEP134NP-1R6MC

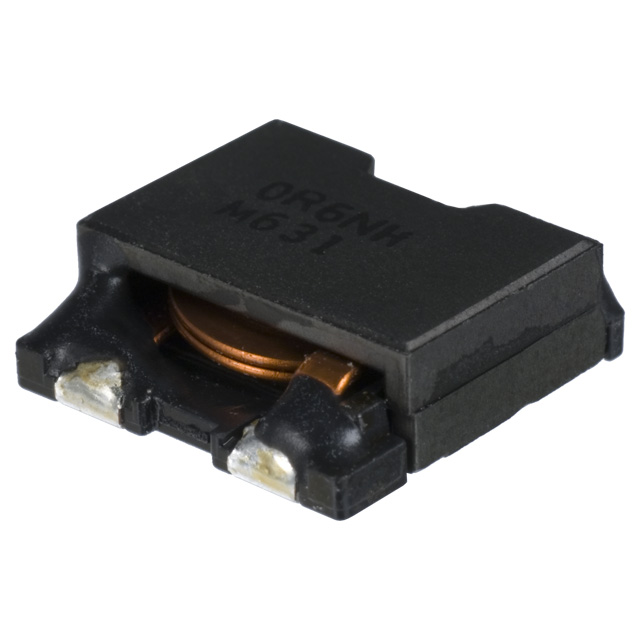

CDEP134NP-1R6MC图片1

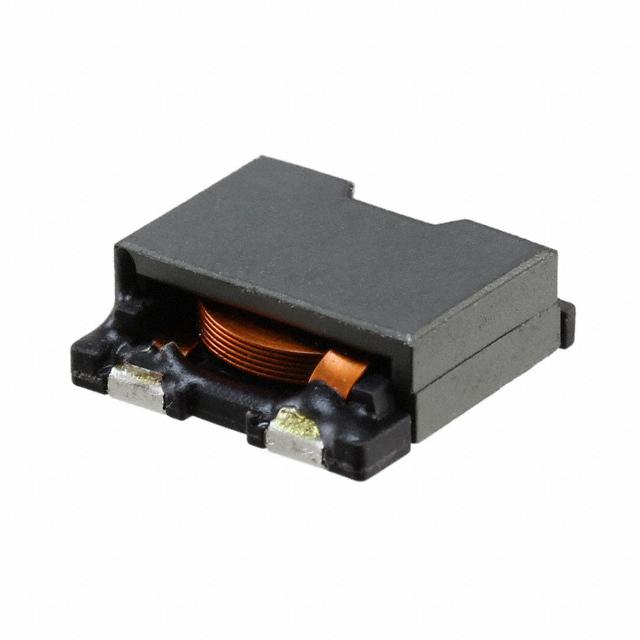

CDEP134NP-1R6MC图片2
CDEP134NP-1R6MC图片3
CDEP134NP-1R6MC图片4
CDEP134NP-1R6MC图片5
CDEP134NP-1R6MC概述

1.6uH ±20% 15A

1.6µH Shielded Inductor 15A 3.7mOhm Max Nonstandard


得捷:
FIXED IND 1.6UH 15A 3.7 MOHM SMD


艾睿:
This power CDEP134NP-1R6MC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 100K Hz. This product is 13.9 mm long, 4.9 mm tall and 13.9 mm deep. This SMD inductor has a maximum DC current of 15 A with a maximum resistance of 3.7m Ohm. It has a tolerance of 20%. It has an inductance of 1.6u H. This device utilizes wirewound technology.


Chip1Stop:
Ind Power Shielded Wirewound 1.6uH 20% 100KHz Ferrite 15A Carrier T/R


CDEP134NP-1R6MC中文资料参数规格
技术参数

额定电流 15 A

电感 1.6 µH

产品系列 CDEP134NP

屏蔽 Yes

电感公差 ±20 %

电阻DC) ≤3.700 mΩ

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.0037 Ω

封装参数

安装方式 Surface Mount

封装 0.547" L x 0.547" W x 0.193" H 13.90mm x 13.90mm x 4.90mm

外形尺寸

长度 13.9 mm

宽度 13.9 mm

高度 4.90 mm

封装 0.547" L x 0.547" W x 0.193" H 13.90mm x 13.90mm x 4.90mm

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CDEP134NP-1R6MC
型号: CDEP134NP-1R6MC
制造商: Sumida 胜美达
描述:1.6uH ±20% 15A
替代型号CDEP134NP-1R6MC
型号/品牌 代替类型 替代型号对比

CDEP134NP-1R6MC

Sumida 胜美达

当前型号

当前型号

CDEP134-1R6MC

胜美达

功能相似

CDEP134NP-1R6MC和CDEP134-1R6MC的区别
