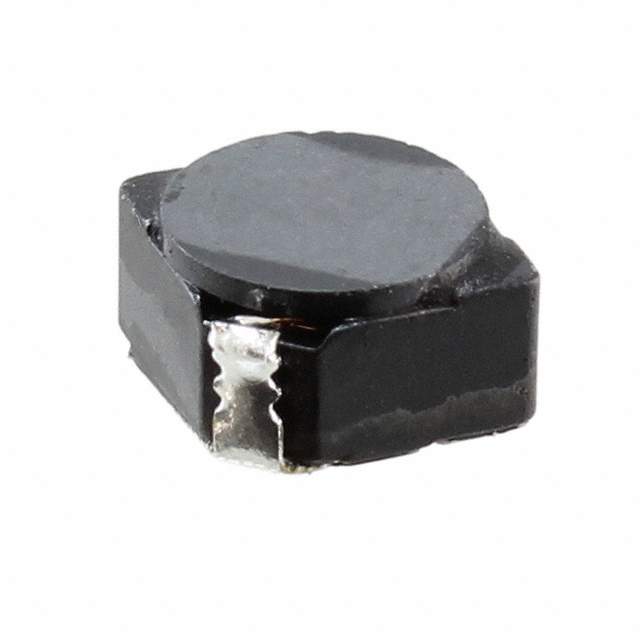

CDRH 系列 22 uH 30 % 容差 0.7 A 屏蔽 表面贴装 功率电感
22 µH 屏蔽 器 700 mA 235 毫欧最大 非标准
得捷:
FIXED IND 22UH 700MA 235MOHM SMD
立创商城:
22uH ±30% 700mA 174.5mΩ
艾睿:
Make any circuit look clean and compact using this power CDRH4D28NP-220NC surface mount inductor from Sumida Corporation. This SMD inductor has an operating temperature range of -40 °C to 100 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 700m A with a maximum resistance of 235m Ohm. This product is 5 mm long, 3 mm tall and 5 mm deep. This device utilizes drum core technology. Its test frequency is 100K Hz.
安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz Ferrite 700mA Carrier T/R
Chip1Stop:
Inductor Power Shielded Drum Core 22uH 30% 100KHz Ferrite 700mA 235mOhm DCR T/R
儒卓力:
**CDRH4D28NP 22uH 700mA 30% WWT **
额定电流 700 mA
容差 ±30 %
电感 22 µH
产品系列 CDRH4D28NP
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤235 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.235 Ω
安装方式 Surface Mount
封装 5 mm x 5 mm
长度 5 mm
宽度 5 mm
高度 3 mm
封装 5 mm x 5 mm
重量 0.2 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH4D28NP-220NC Sumida 胜美达 | 当前型号 | 当前型号 |
CDRH4D28-220NC 胜美达 | 类似代替 | CDRH4D28NP-220NC和CDRH4D28-220NC的区别 |
