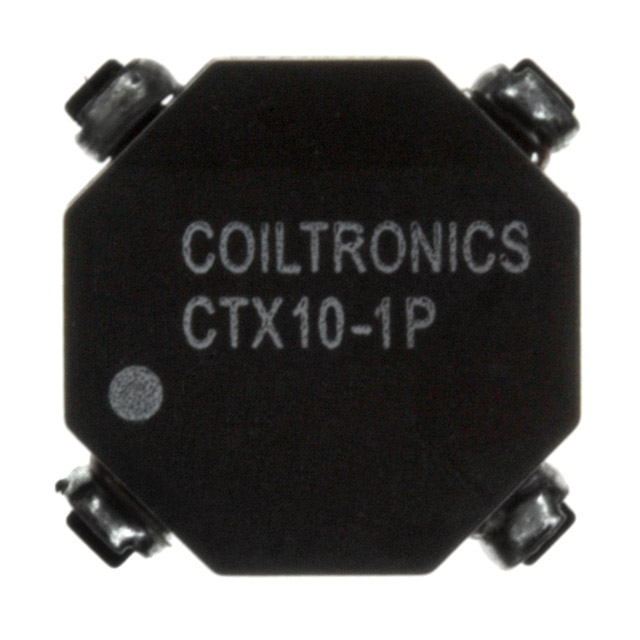

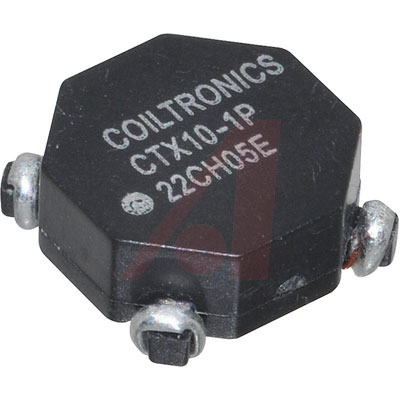

Inductor Power Wirewound 9.62uH/38.48uH 20% 100kHz Powdered Iron 1.7A/0.85A 57mOhm/227mOhm DCR T/R

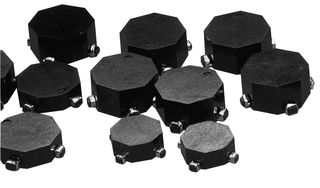

* Surface Mount Magnetics That Can Be Used as Single or Coupled Inductors or 1:1 Transformers That Provide Isolation Between Two Windings
* OCTA-PACs Are Designed Around High Frequency, Low Loss Material
* ECONO-PACs Are a Lower Cost Version of OCTA-PACs Offering High Saturation Flux Density
* OCTA-PAC PLUSs Offer Higher Current Ratings and Higher Saturation Flux Densities Than OCTA-PAC and ECONO-PAC
* Secure 4-Terminal Mounting
* Inductor More Versatile Inductance Combination By Series or Parallel Connections
额定电流 1.70 A
容差 ±20 %
电感 9.62 µH
电阻 57.0 mΩ
屏蔽 No
电感公差 ±20 %
电阻DC） 0.057 Ω
额定电流DC 1.7 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.057 Ω
安装方式 Surface Mount
引脚数 4
封装 SMD
长度 11.43 mm
宽度 11.43 mm
高度 4.19 mm
封装 SMD
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CTX10-1P-R Cooper Bussmann 库柏 | 当前型号 | 当前型号 |
CTX10-1A-R 库柏 | 类似代替 | CTX10-1P-R和CTX10-1A-R的区别 |
CTX10-1-52-R 伊顿巴斯曼 | 功能相似 | CTX10-1P-R和CTX10-1-52-R的区别 |
