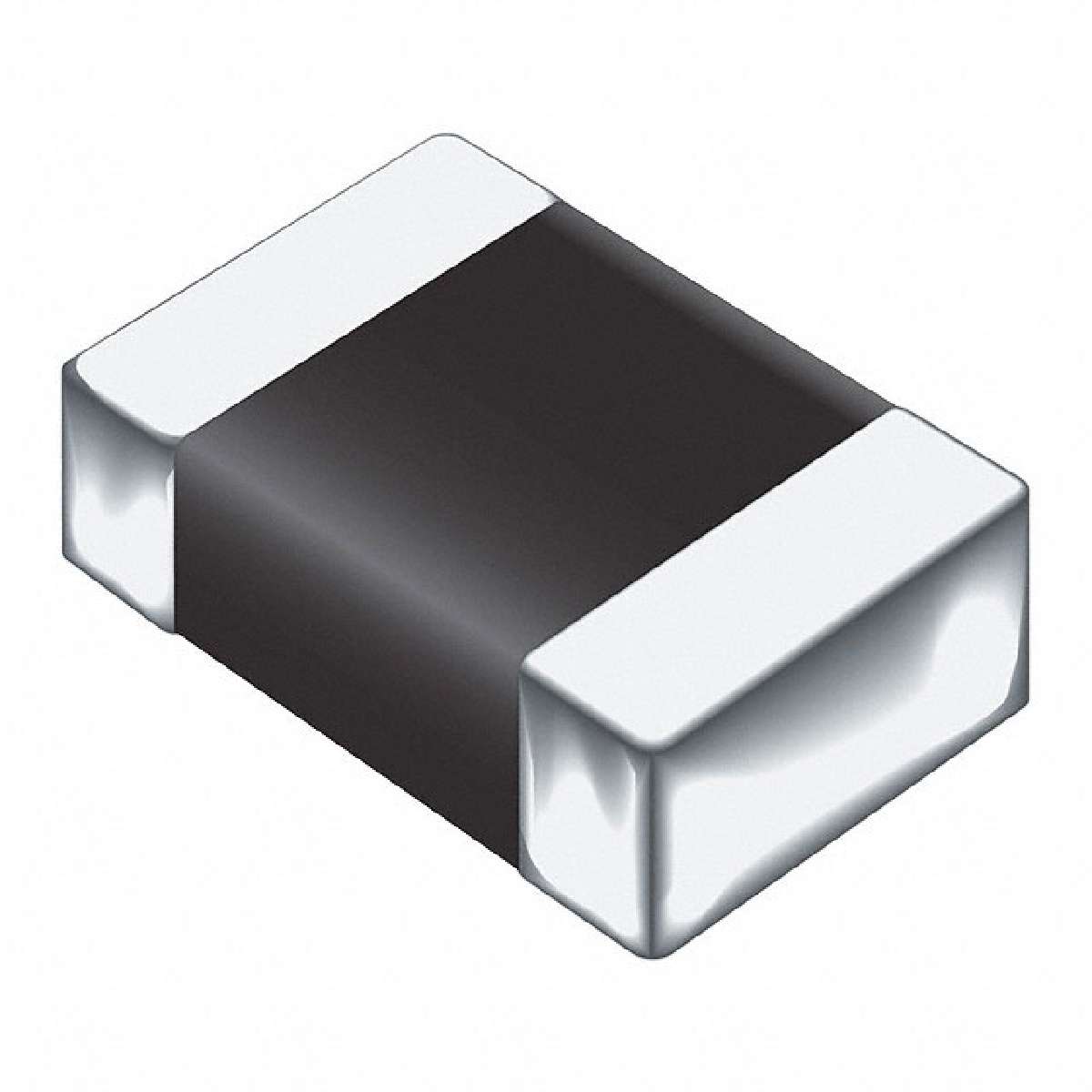

CGA0805MLA-38201E

Var 30VAC 38VDC 80A 52.7V 0805 SMD Paper T/R

The ChipGuard® MLC Series has been specifically designed to protect sensitive electronic components from electrostatic discharge damage. The MLC family has been designed to protect equipment to IEC61000-4-2, Level 4 ±8 kV Contact/±15 kV Air Discharge ESD specifications targeted for high speed USB 3.0/USB OTG, HDMI 1.4, DVI or IEEE1394 applications.

The ChipGuard® MLC Series has been manufactured to provide low 0.5 pF capacitance and leakage currents less than 50 nA with excellent clamp qualities, making the family almost transparent under normal working conditions.

**Features:**

* RoHS compliant

* ESD protection >25 kV

* Low capacitance <0.5 pF

* Low leakage current <50 nA
