CDRH127NP-560MC

56uH ±20% 2.35A

56 µH 屏蔽 - 器 2.35 A 110 毫欧最大 非标准

得捷:
FIXED IND 56UH 2.35A 110MOHM SMD

立创商城:
56uH ±20% 2.8A 83mΩ

贸泽:
Fixed Inductors 56uH 2.35A

艾睿:

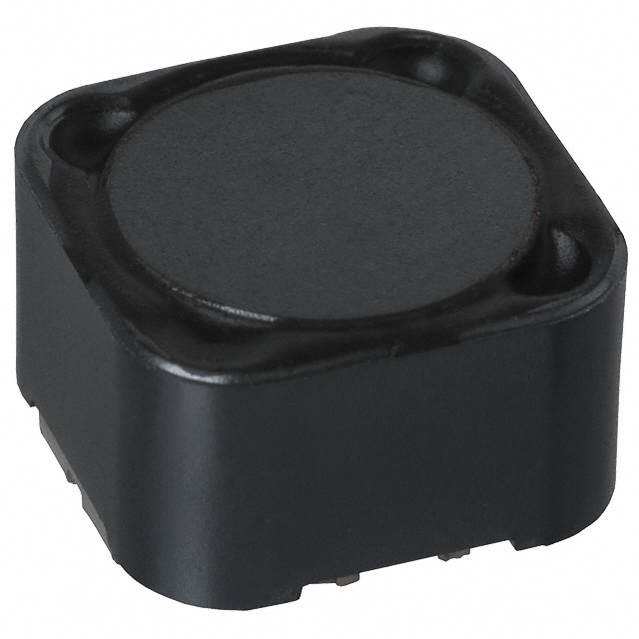

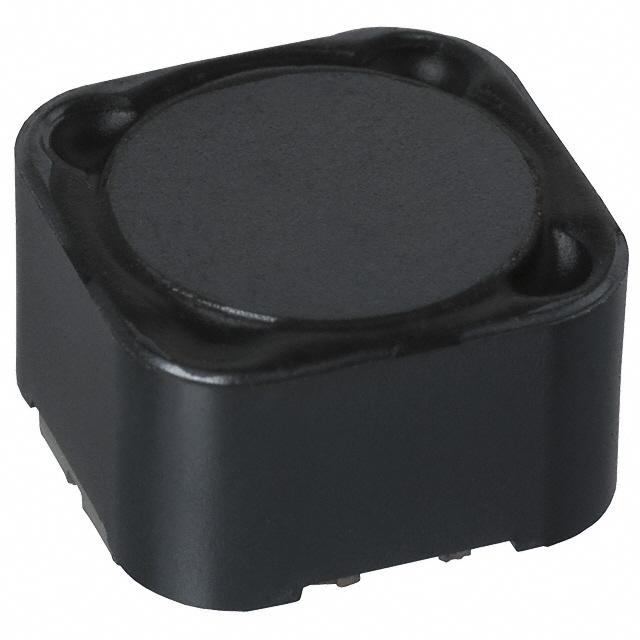

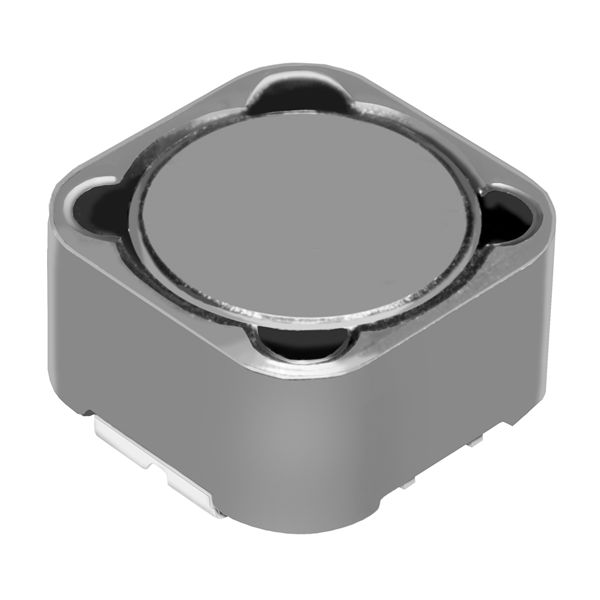

This power CDRH127NP-560MC surface mount inductor from Sumida Corporation is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 56u H. It has a tolerance of 20%. Its test frequency is 1K Hz. This SMD inductor has a maximum DC current of 2.35 A with a maximum resistance of 110m Ohm. This device is made with drum core technology. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep.

Chip1Stop:
Ind Power Shielded Wirewound 56uH 20% 1KHz Ferrite 2.35A Carrier T/R

儒卓力:
**CDRH127NP 56uH 2350mA 20% **
