CDRH5D18NP-220NC

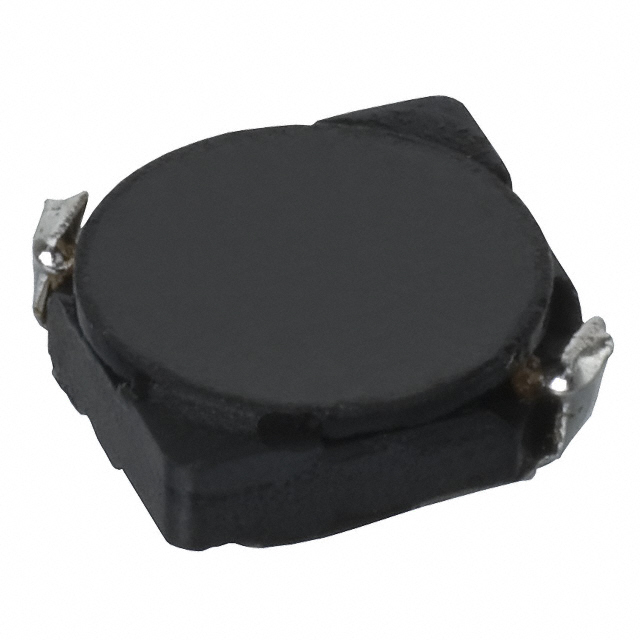

CDRH5D18NP-220NC图片1
CDRH5D18NP-220NC图片2
CDRH5D18NP-220NC图片3
CDRH5D18NP-220NC图片4
CDRH5D18NP-220NC图片5
CDRH5D18NP-220NC图片6
CDRH5D18NP-220NC图片7
CDRH5D18NP-220NC图片8
CDRH5D18NP-220NC图片9
CDRH5D18NP-220NC概述

CDRH 系列 22 uH 30 % 容差 0.8 A 屏蔽 表面贴装 功率电感

22µH Shielded Inductor 800mA 290mOhm Max Nonstandard


得捷:
FIXED IND 22UH 800MA 290MOHM SMD


立创商城:
22uH ±30% 800mA 215mΩ


贸泽:
Fixed Inductors 22uH 800mA


艾睿:
This power CDRH5D18NP-220NC surface mount inductor from Sumida Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 6 mm long, 2 mm tall and 6 mm deep. This device is made with drum core technology. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 290m Ohm. It has an inductance of 22u H. Its test frequency is 100K Hz.


安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz Ferrite 800mA Carrier T/R


富昌:
CDRH 系列 22 uH 30 % 容差 0.8 A 屏蔽 表面贴装 功率电感


Chip1Stop:
Ind Power Shielded Wirewound 22uH 30% 100KHz Ferrite 800mA Carrier T/R


Verical:
Inductor Power Shielded Drum Core 22uH 30% 100KHz Ferrite 800mA 290mOhm DCR T/R


Win Source:
22μH Shielded Inductor 800mA 290 mOhm Max Nonstandard


CDRH5D18NP-220NC中文资料参数规格
技术参数

额定电流 800 mA

容差 ±30 %

电感 22 µH

产品系列 CDRH5D18NP

屏蔽 Yes

电感公差 ±30 %

测试频率 100 kHz

电阻DC) ≤290 mΩ

工作温度Max 100 ℃

工作温度Min -40 ℃

电阻DC Max 0.29 Ω

封装参数

安装方式 Surface Mount

封装 6 mm x 6 mm

外形尺寸

长度 6 mm

宽度 6 mm

高度 2 mm

封装 6 mm x 6 mm

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CDRH5D18NP-220NC
型号: CDRH5D18NP-220NC
制造商: Sumida 胜美达
描述:CDRH 系列 22 uH 30 % 容差 0.8 A 屏蔽 表面贴装 功率电感
替代型号CDRH5D18NP-220NC
型号/品牌 代替类型 替代型号对比

CDRH5D18NP-220NC

Sumida 胜美达

当前型号

当前型号

CDRH5D18-220NC

胜美达

功能相似

CDRH5D18NP-220NC和CDRH5D18-220NC的区别
