PANASONIC ELECTRIC WORKS CP1-12V. 车用继电器, 12VDC, 40A, SPDT
The is a compact PCB Relay. Relay has sealed construction, suitable for harsh environments and arrangement of coil and contact terminals designed to withstand large capacity which ensures leeway and facilitates PC board design. Relay provides low profile space saving advantages while offering high continuous current of 40A.
- .
- Compact Flat Type Relay
- .
- SPDT Contact Configuration
- .
- High Capacity Provides Low Profile Space Saving Advantages
- .
- Simple Footprint Pattern Enables Ease of PC Board Layout
- .
- Sealed Construction
- .
- Surface Mount Terminal
额定电压DC 14 V

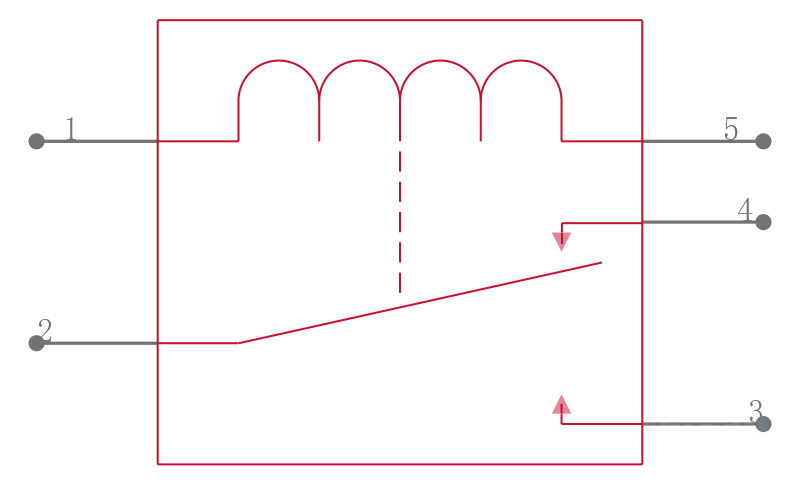

触点类型 SPDT
功耗 640 mW
触点额定电流 20 A
线圈电压 12 VDC
线圈电流 53.3 mA
线圈电阻 225 Ω
线圈电压DC 12 V
线圈功率 640 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 14 V
安装方式 Through Hole

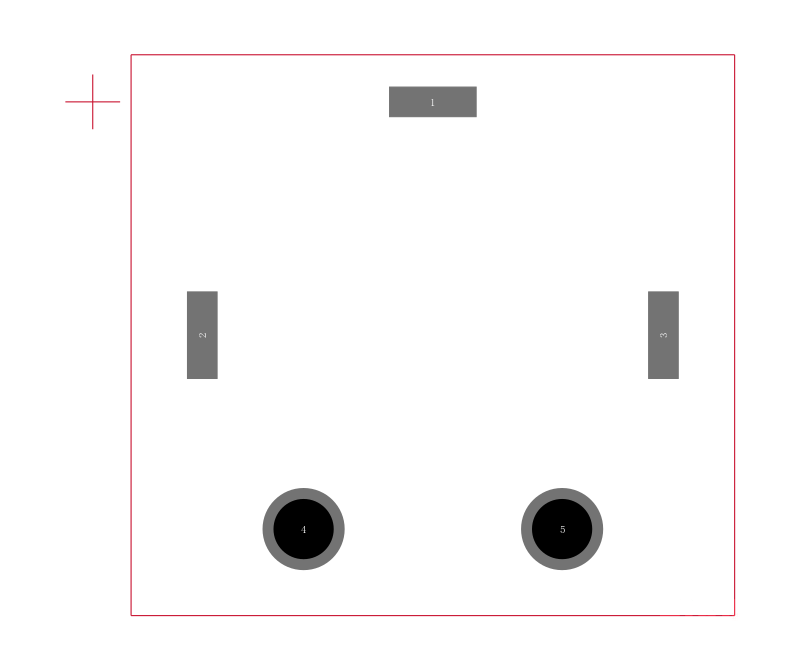

引脚数 5
封装 -
长度 14 mm
宽度 9.5 mm
高度 9.5 mm
封装 -
触点材质 Silver Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CP1-12V Panasonic 松下 | 当前型号 | 当前型号 |
V23086C1001A403 泰科 | 功能相似 | CP1-12V和V23086C1001A403的区别 |
