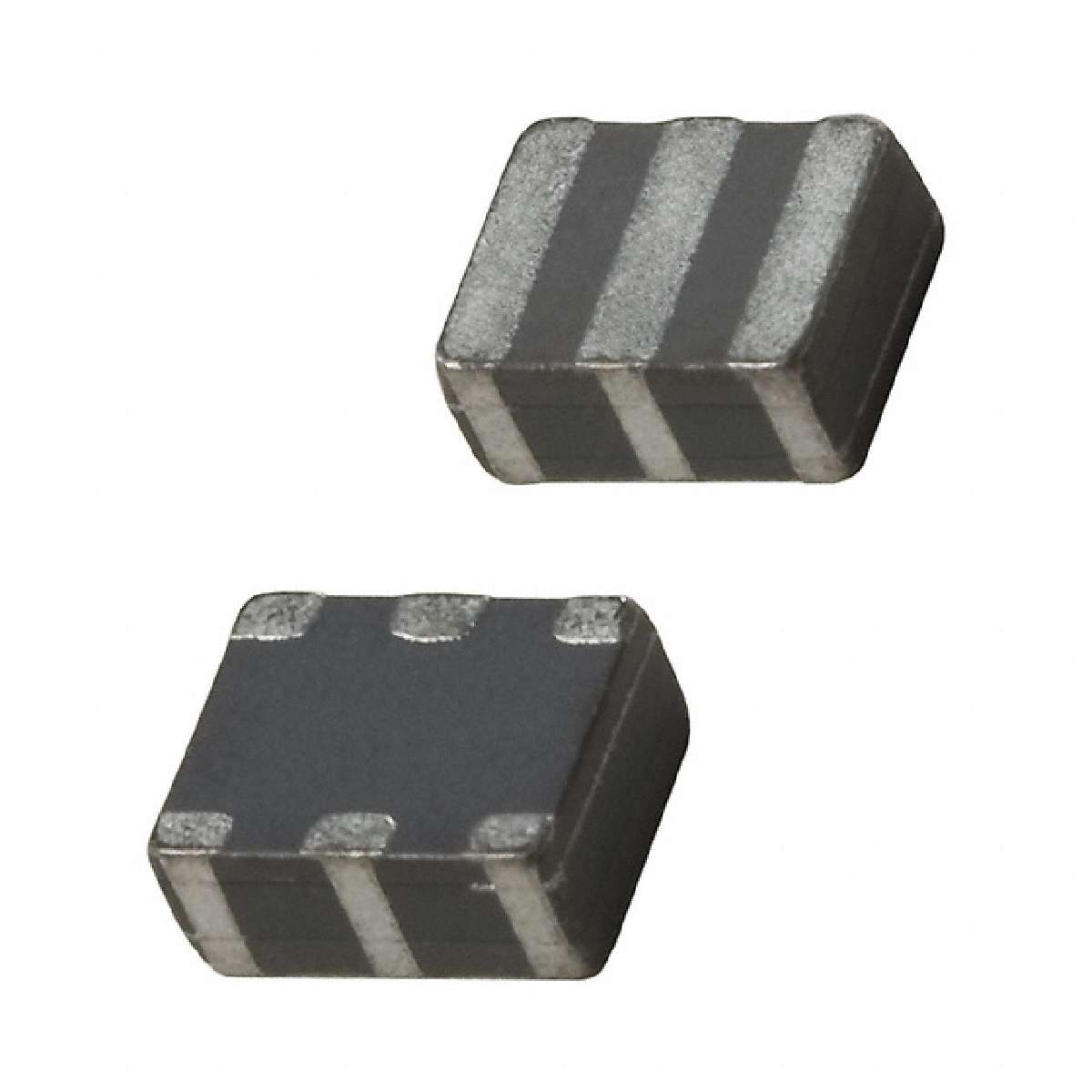

25MHz Ceramic Resonator Built in Capacitor 8pF ±0.2% 40Ω -40℃ ~ 85℃ Surface Mount
FEATURES • CCRBuilt-in load capacity/External load capacity series • The CCR series are thin-type ceramic chip resonators. Thickness shear mode or 3rd over-tone thickness expansion mode element are used for both the 4.0 to 11.0MHz band and the 16.0 to 50.0MHz band. • Products with built-in loading capacitance have piezoelectric elements that are mounted onto a capacity-forming dielectric substrate.This eliminates the need for external capacitors, thus simplifying circuit requirements. • Optimization of the temperature characteristics of both the piezoelectric element and dielectric materials has resulted in stable oscillating frequency. • Corresponds to reflow soldering. Moreover, it is possible to correspond Pb-free soldering.260°C,10sec. max. Packaging style is emboss taping. • Setting or matching of oscillating frequency which correspond to new models, application IC or custom IC are also available,
