CCR16.93MXC7T概述

Ceramic Resonator 16.934MHz ±0.5% Tol 9pF 3rd Overtone 70Ω 3Pin SMD T/R

Ceramic Resonator 16.934MHz ±0.5% Tol 9pF 3rd Overtone 70Ohm 3-Pin SMD T/R

得捷:
CERAMIC RES 16.9300MHZ 9PF SMD

Chip1Stop:
Ceramic Resonator 16.934MHz 3-Pin SMD T/R

Verical:
Ceramic Resonator 16.934MHz ±0.5% Tol 9pF 3rd Overtone 70Ohm 3-Pin SMD T/R

Online Components:
Ceramic Resonator 16.934MHz ±0.5% Tol 9pF 3rd Overtone 70Ohm 3-Pin SMD T/R

Electro Sonic:
Ceramic Resonator 16.934MHz ±0.5% Tol 9pF 3rd Overtone 70Ohm 3-Pin SMD T/R

Win Source:
CER RES 16.9300MHZ 9PF SMD

CCR16.93MXC7T中文资料参数规格

技术参数

频率 16.93 MHz

频率稳定度 ±0.2 %

频率容差 ±0.5 %

电容 9 pF

负载电容 9 pF

封装参数

安装方式 Surface Mount

引脚数 3

封装 Non-Standard

外形尺寸

长度 2.50 mm

宽度 2.00 mm

高度 800 µm

封装 Non-Standard

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

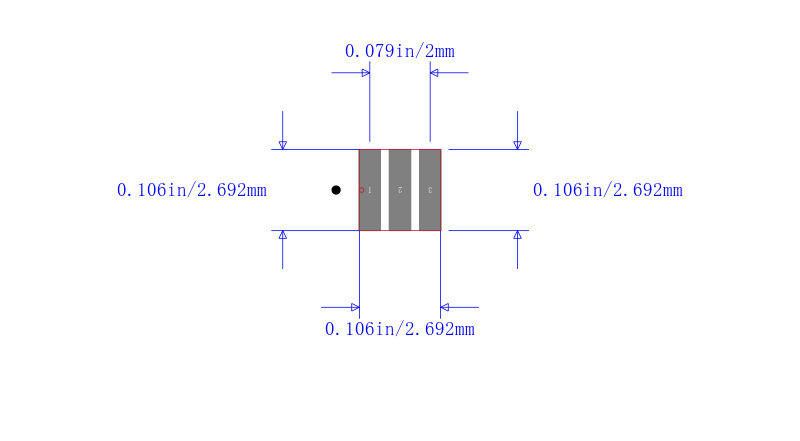

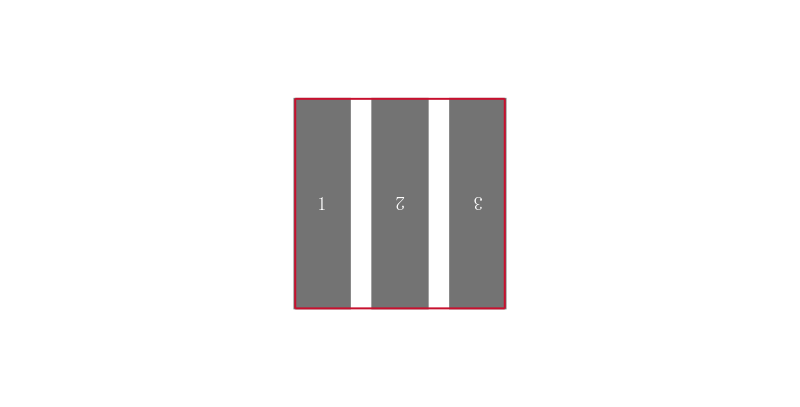

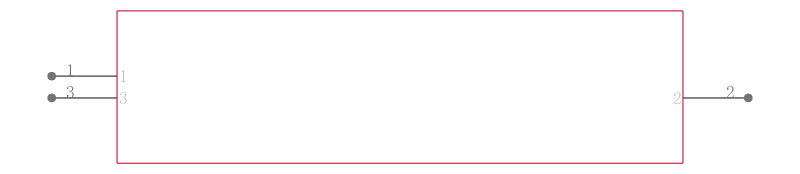

CCR16.93MXC7T引脚图与封装图

在线购买CCR16.93MXC7T

型号： CCR16.93MXC7T

描述：Ceramic Resonator 16.934MHz ±0.5% Tol 9pF 3rd Overtone 70Ω 3Pin SMD T/R
