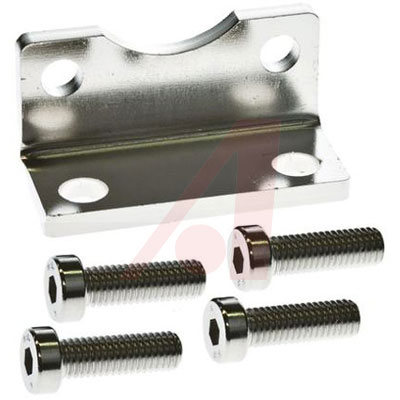

C55-L025

ISO 紧凑型 C55 气缸ISO 标准紧凑型气缸，硬阳极氧化铝主体。 提供双作用型号，带有标准磁性活塞。ISO 标准 21287 紧凑型 磁性传感 ### 注紧固元件应单独订购。### 标准ISO 21287### ISO 紧凑型 C55 气缸

C55 double acting, air operated cylinders were designed to meet a broad range of automation machine applications.? The C55 series achieves outstanding load performance due to its unique rubber bumpers, piston wear ring, and rod bushing.? Standardized mounting options conform to both ISO 21287 and 6431.

.

Conforms with the ISO 21287 standard * Bore sizes of 20, 25, 32, 40, 50, 63, 80 and 100?mm * Large stroke range from 5 mm up to 150 mm * Construction is similar to the current CQ2 lateral load resistant specification * Snap ring construction allows easy and quicker maintenance * Auto switches can be mounted on any of the four sides of the cylinder tube
