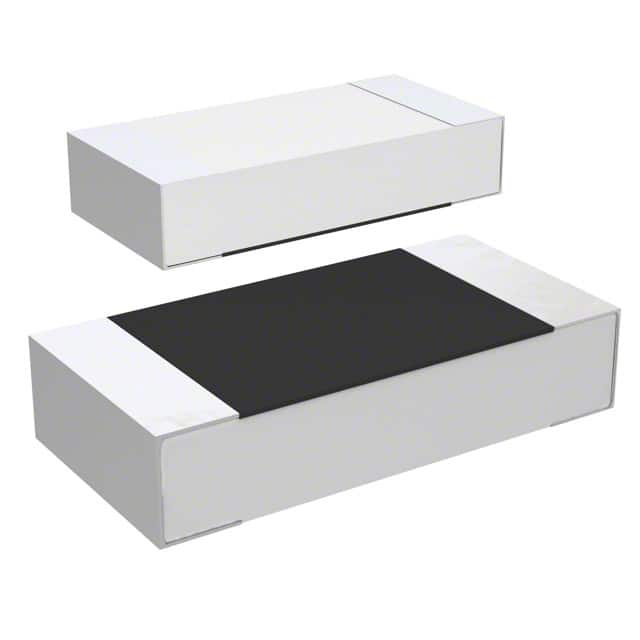

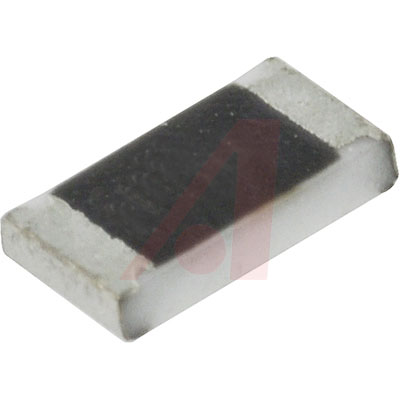

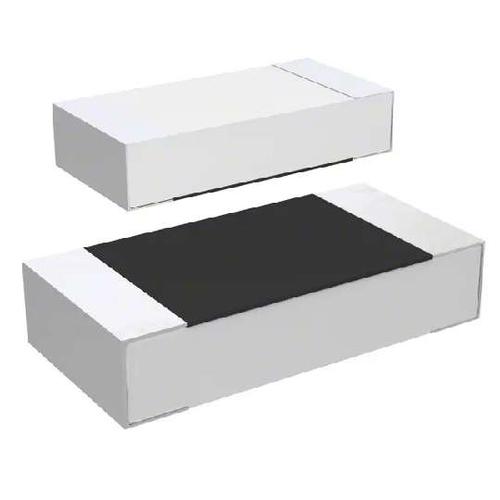

1206 型 CRG1206 表面安装系列厚膜电阻器 CRG 系列具有高功率尺寸比，特别适用于工业和一般用途。 1Ω 至 10M 范围，1% 和 5% 容差，包括 0Ω 链路。 由于短引线结构和低电容，适用于大多数应用，包括高频操作。 七种封装尺寸 接线端子表面：无光泽锡 湿度敏感性等级：2 级 70°C 时功率 | 0.25W ---|--- 电阻容差 | ±1% 温度系数 | ±100ppm/°C 工作温度 | -55°C → +125°C 极限元件电压 | 200V 跳线芯片电阻 | 50mΩ（最大值） 70°C 时电流 | 2A 尺寸（长x宽x厚） | 3.1 x 1.55 x 0.55 mm
Precious metal terminations are screen printed onto ceramic base and fired. The resistive element is screen printed and fired and the passivation layer added. Each resistor is trimmed to tolerance by laser. The pre-scribed tile is broken into strips, the end plating is fired on the strips broken into individual components. Final termination is made by electroplating.
**Features:**
* Thick Film Resistors with a High Power to Size Ratio, Ideally Suited to Industrial and General Purpose Use. A Range from 1 Ohm to 10 Megohms and Tolerances of 1% F and 5% J. Also Including Zero Ohms Links Z
* Suitable for Most Applications, Including High Frequency Operation, Owing to the Short Lead Structure and Low Capacitance
