CBS1002405-T

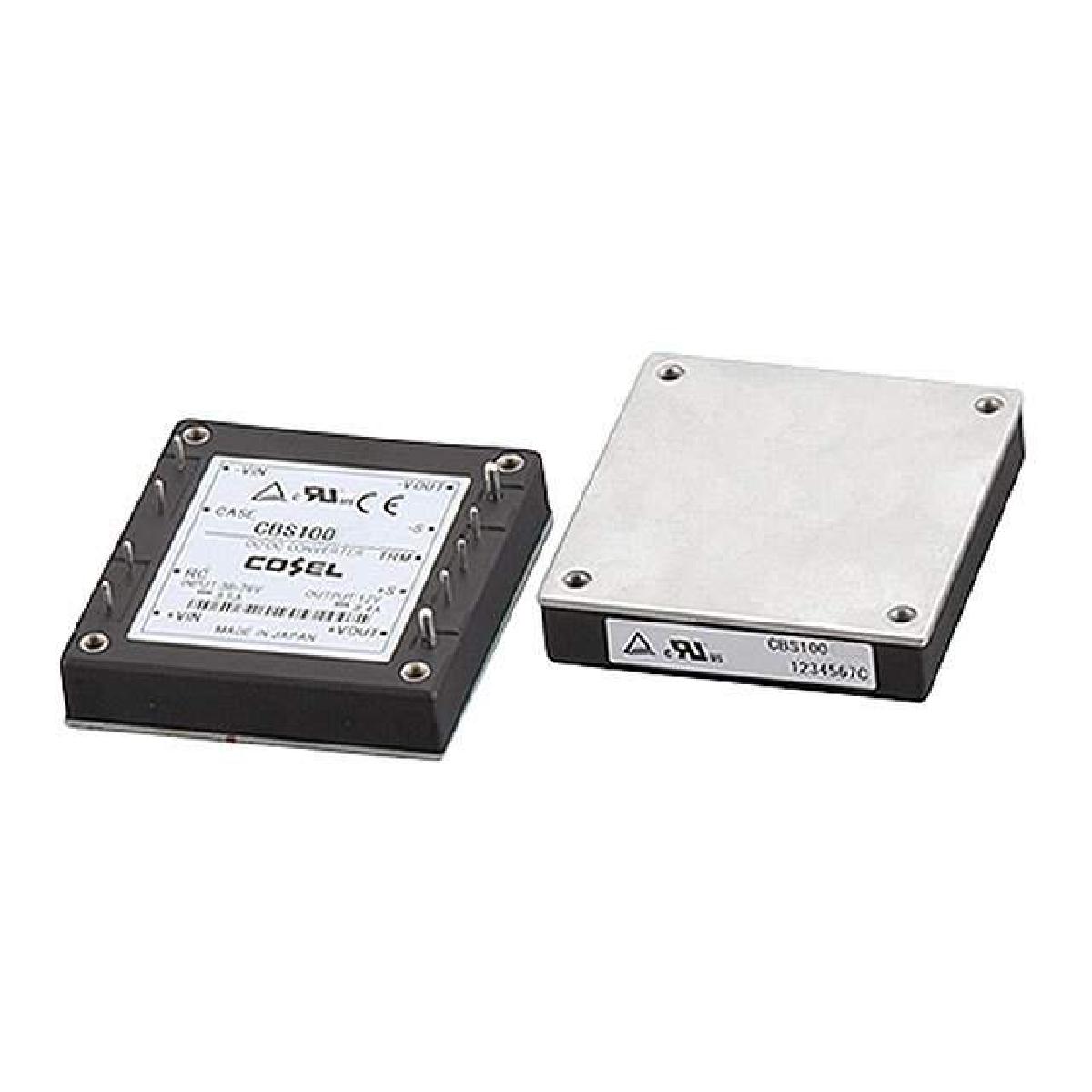

CBS1002405-T图片1

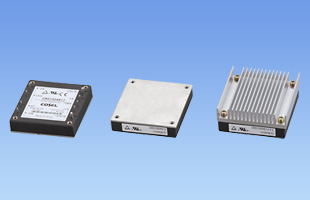

CBS1002405-T图片2

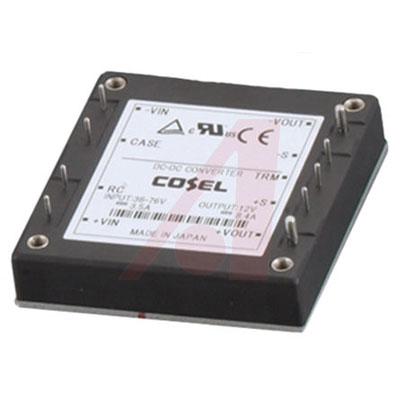

CBS1002405-T图片3
CBS1002405-T图片4
CBS1002405-T图片5
CBS1002405-T概述

100W 隔离式直流-直流转换器 / Vout 5V, 20A 10mV负载调节 10mV线路调节

**CBS Series, 50-450W Single Output**

The CBS series DC-DC converters offer a wide range of power ratings and output voltages making them extremely versatile and suitable for many applications. Additional feature include remote sensing, remote on/off and overcurrent and overvoltage protection.


得捷:
DC DC CONVERTER 5V 100W


艾睿:
Module DC-DC 24VIN 1-OUT 5V 20A 100W 9-Pin Half-Brick


Allied Electronics:
Isolated DC-DC Converter, Vin 18 - 36 Vdc, Vout 5V, I/O isolation 1500V


Chip1Stop:
Module DC-DC 24VIN 1-OUT 5V 20A 100W 9-Pin Half-Brick


CDI:
100 Watt 24V to 5V 2:1 Regulated Intermediate Bus DC/DC Converter Tapped


CBS1002405-T中文资料参数规格
技术参数

输出接口数 1

输出电压 5 V

输出电流 20 A

输出功率 100 W

隔离电压 1.5 kV

输入电压Max 36 V

输入电压Min 18 V

工作温度Max 100 ℃

工作温度Min -40 ℃

输入电压 18V ~ 36V

封装参数

安装方式 Through Hole

引脚数 9

封装 Half-Brick

外形尺寸

长度 2.4 in

宽度 2.28 in

高度 0.5 in

封装 Half-Brick

物理参数

工作温度 -40℃ ~ 100℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 PB free

数据手册

在线购买CBS1002405-T
型号: CBS1002405-T
制造商: Cosel
描述:100W 隔离式直流-直流转换器 / Vout 5V, 20A 10mV负载调节 10mV线路调节
