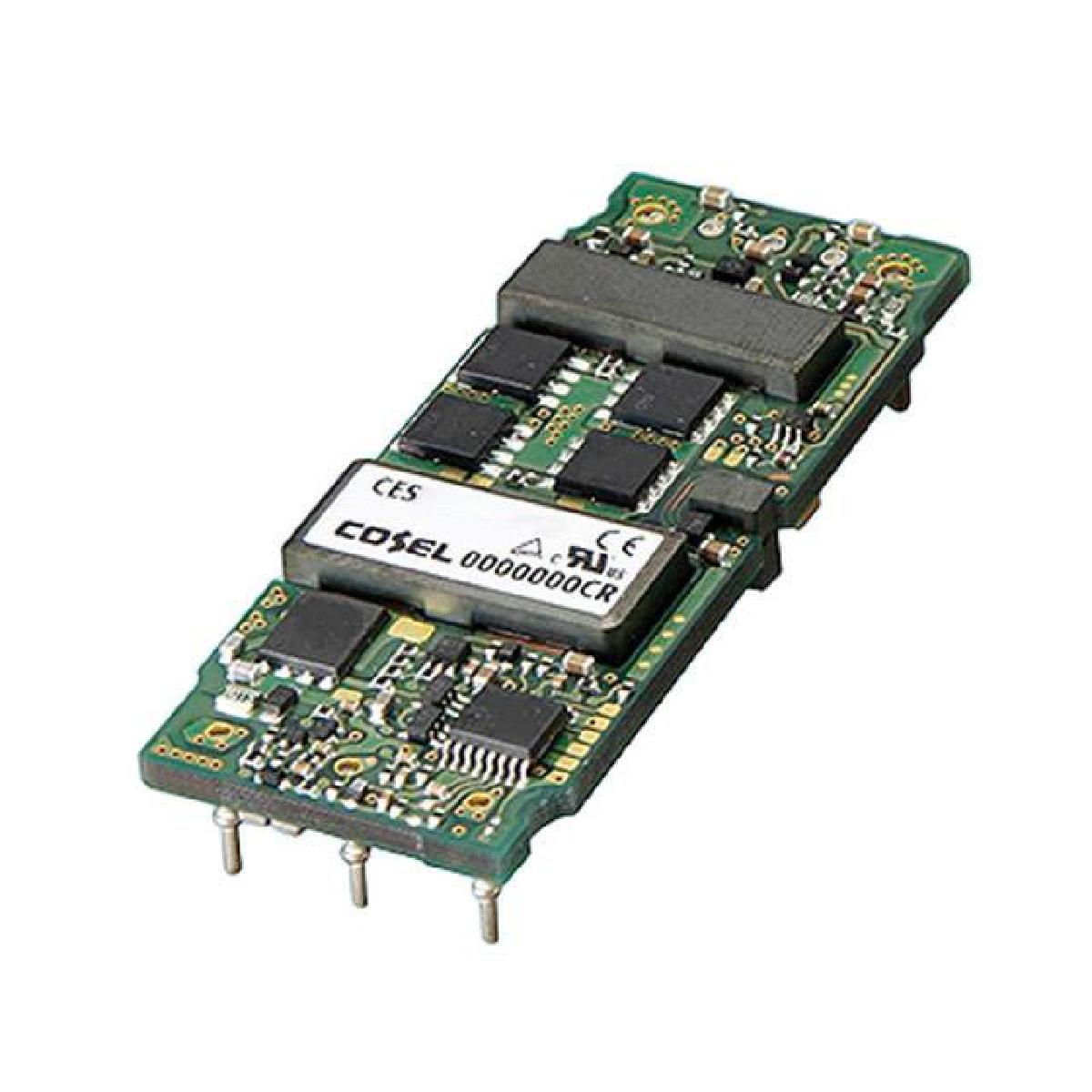

CES48033-25

CES48033-25图片1
CES48033-25图片2
CES48033-25图片3
CES48033-25图片4
CES48033-25图片5
CES48033-25图片6
CES48033-25图片7
CES48033-25图片8
CES48033-25图片9
CES48033-25概述

Module DC-DC 48Vin 1Out 3.3V 25A 82.5W 8Pin 1/8-Brick

**CES Series, 4-25A Single Output**

The CES Series DC-DC converters offer a wide range of power ratings and output voltages making them extremely versatile and suitable for many applications. Additional feature include remote sensing, remote on/off and overcurrent and overvoltage protection.


得捷:
DC DC CONVERTER 3.3V


Allied Electronics:
Isolated DC-DC Converter, Vout 3.3V dc, I/O isolation 1000 V ac, 1500 V dc


Chip1Stop:
Module DC-DC 48VIN 1-OUT 3.3V 25A 82.5W 8-Pin 1/8-Brick


CDI:
83 Watt 48V to 3.3V Regulated Intermediate Bus DC/DC Converter


CES48033-25中文资料参数规格
技术参数

输出接口数 1

输出功率 82.5 W

隔离电压 1.5 kV

输入电压Max 76 V

输入电压Min 36 V

输出电流Max 25 A

输入电压 36V ~ 76V

封装参数

安装方式 Through Hole

封装 DIP-8

外形尺寸

长度 2.28 in

宽度 0.9 in

高度 0.33 in

封装 DIP-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

制造应用 ITE(商业)

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

香港进出口证 NLR

数据手册

在线购买CES48033-25
型号: CES48033-25
制造商: Cosel
描述:Module DC-DC 48Vin 1Out 3.3V 25A 82.5W 8Pin 1/8-Brick
