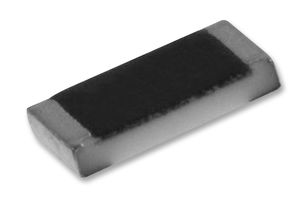

TE CONNECTIVITY / NEOHM CPF0805B820RE1 片式电阻器, 表面贴装, 薄膜, CPF系列, 820 ohm, 200 V, 0805 [2012公制], 100 mW, ± 0.1%
The TE Connectivity CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.
- .
- EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
- .
- Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
- .
- ±0.1%, ±0.5% and ±1% tolerance
- .
- Electroplated 100% matte Sn finish
- .
- Operating temperature range -55°C to 125°C
额定功率 100 mW
电阻 820 Ω
阻值偏差 ±0.1 %
额定电压 200 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Industrial, 电源管理, 便携式器材, Portable Devices, 消费电子产品, 工业
RoHS标准 RoHS Compliant
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CPF0805B820RE1 Neohm | 当前型号 | 当前型号 |
RR1220P-821-B-T5 Susumu | 功能相似 | CPF0805B820RE1和RR1220P-821-B-T5的区别 |
PCF0805-13-820R-B-T1 TT Electronics/Welwyn | 功能相似 | CPF0805B820RE1和PCF0805-13-820R-B-T1的区别 |
PCF0805P-R-820R-BT1 TT Electronics/Welwyn | 功能相似 | CPF0805B820RE1和PCF0805P-R-820R-BT1的区别 |
