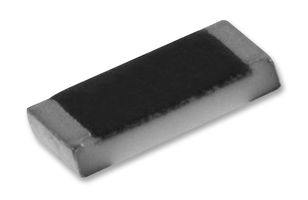

TE CONNECTIVITY / NEOHM CPF0805B4K7E1 片式电阻器, 表面贴装, 薄膜, CPF系列, 4.7 kohm, 100 V, 0805 [2012公制], 100 mW, ± 0.1%
The TE Connectivity CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.
- .
- EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
- .
- Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
- .
- ±0.1%, ±0.5% and ±1% tolerance
- .
- Electroplated 100% matte Sn finish
- .
- Operating temperature range -55°C to 125°C
额定功率 100 mW
电阻 4.7 kΩ
阻值偏差 ±0.1 %
额定电压 100 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, Industrial, 电源管理, 便携式器材, Portable Devices, 消费电子产品, 工业
RoHS标准 RoHS Compliant
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8533210080
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CPF0805B4K7E1 Neohm | 当前型号 | 当前型号 |
RR1220P-472-B-T5 Susumu | 类似代替 | CPF0805B4K7E1和RR1220P-472-B-T5的区别 |
WF08U4701BTL 台湾华科 | 类似代替 | CPF0805B4K7E1和WF08U4701BTL的区别 |
PCF0805-13-4K7-B-T1 TT Electronics/Welwyn | 类似代替 | CPF0805B4K7E1和PCF0805-13-4K7-B-T1的区别 |
