CC1350F128RGZT

ARM MCU微控制单元, SimpleLink Family CC135x Series Microcontrollers, ARM Cortex-M0, ARM Cortex-M3, 32位

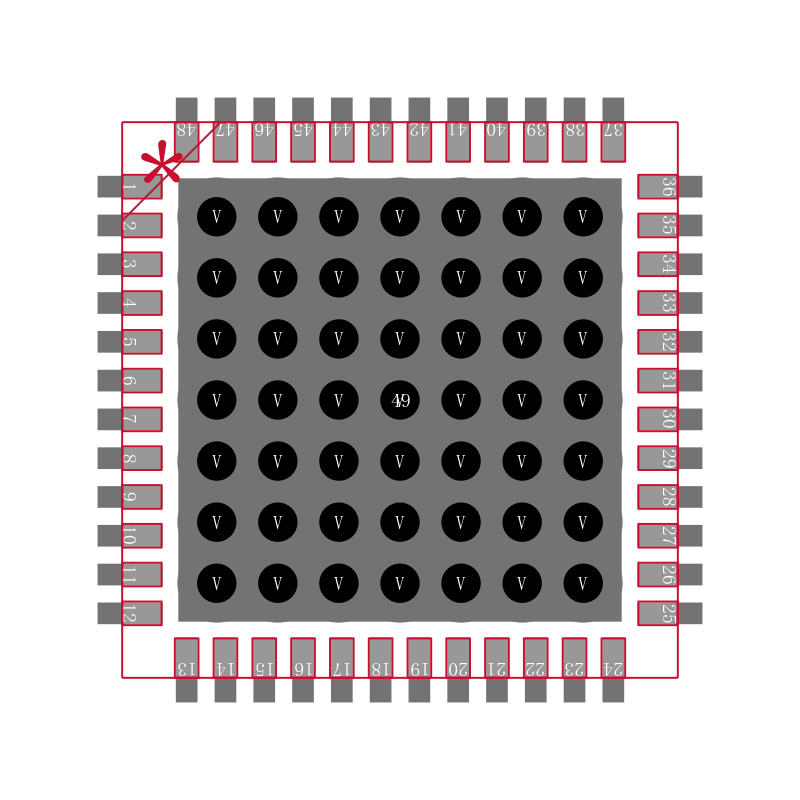

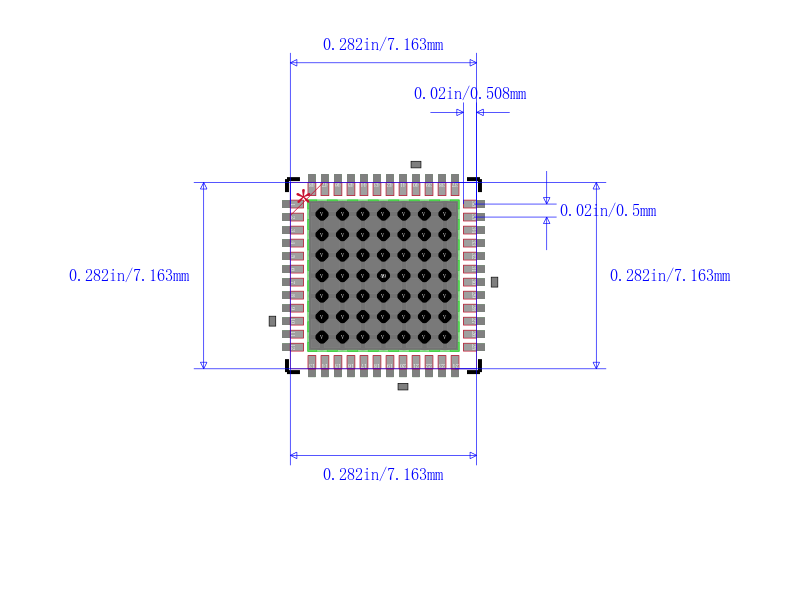

The is a SimpleLink ultra-low power dual band wireless microcontroller in 48 pin VQFN package. The CC1350 is a member of the CC26xx and CC13xx family of cost-effective, ultra-low-power, 2.4GHz and Sub-1GHz RF devices. Very low active RF and MCU current consumption, in addition to flexible low-power modes, provide excellent battery lifetime and allow long range operation on small coin-cell batteries and in energy-harvesting applications. The CC1350 device combines a flexible, very low-power RF transceiver with a powerful 48MHz cortex-M3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated radio controller cortex-M0 handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and flexibility to handle both sub-1GHz protocols and 2.4GHz protocols. The CC1350 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC to DC converter.

.

Wide supply voltage range from 1.8V to 3.8V

.

Clock speed up to 48MHz, 128KB of in-system programmable flash, 8KB of SRAM for cache

.

20KB of ultra low leakage SRAM, 2pin cJTAG and JTAG debugging, supports over-the-air OTA update

.

Data rate is 4000Kbps, receiver current is 5.5mA, sensitivity is -124dBm, transmitter power is 14dBm

.

Efficient code size architecture, -RTOS, drivers, Bluetooth low energy controller, bootloader

.

4 general-purpose timer modules, 12bit ADC, 200KSPS, 8 ch analogue mux, continuous time comparator

.

Comparator, programmable current source, UART, 2× SSI, I2C, I2S, RTC, AES-128 security module, TRNG

.

Support for eight capacitive sensing buttons, integrated temperature sensor

.

On-chip internal DC to DC converter, Seamless integration with SimpleLink CC1190 & CC2592 extenders

.

Operating temperature range from -40°C to 85°C

ESD sensitive device, take proper precaution while handling the device.
