CA2-B0-34-615-121-D概述

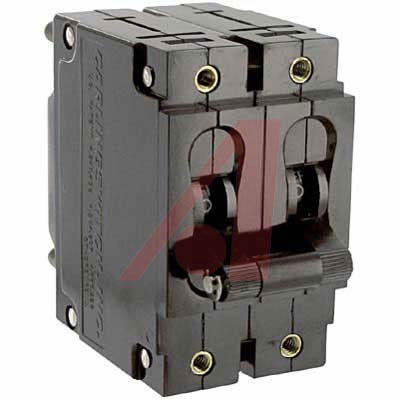

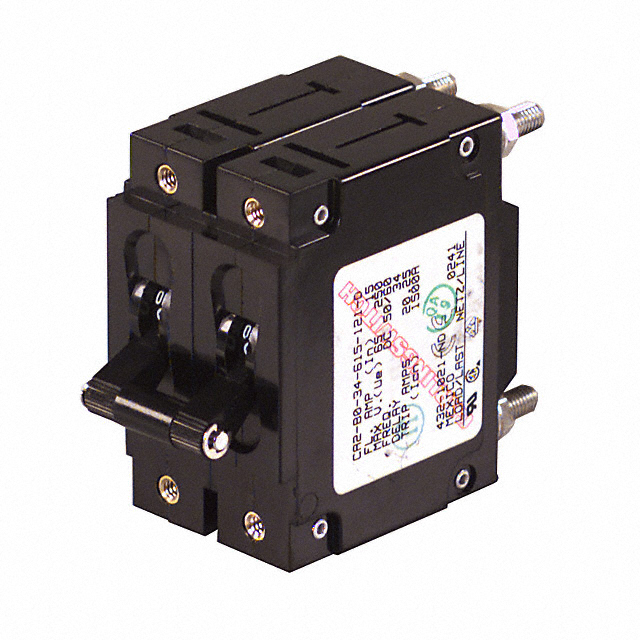

Circuit Breaker Hydraulic Magnetic 2Pole 15A 250VAC/80VDC

** C-Series Circuit Breakers**

Carling Technologies C-Series hydraulic/magnetic circuit breakers are ideal for applications that require higher amperage and voltage handling capability in a compact package. They are available in 1-6 poles, 0.02-100 amps, up to 480 V ac or 150 V dc, with choice of time delays, terminal options, actuator styles and Colors. The C-Series employs a unique arc chute design which allows for higher interrupting capacities of up to 10,000 amps. A thermoset glass filled polyester half shell construction provides for increased mechanical and electrical strength. The wiping contacts, mechanical linkage with two step actuation, and clean contacts provide high, positive contact pressure and longer contact life.

CA2-B0-34-615-121-D中文资料参数规格
技术参数

跳闸时间 20.0 s

额定电流 15 A

额定电压 250VAC, 80VDC

封装参数

安装方式 Panel

封装 -

外形尺寸

长度 52.37 mm

宽度 19.18 mm

高度 63.5 mm

封装 -

物理参数

颜色 Black

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536200020

数据手册

在线购买CA2-B0-34-615-121-D
型号: CA2-B0-34-615-121-D
制造商: Carling Technologies 嘉灵科技
描述:Circuit Breaker Hydraulic Magnetic 2Pole 15A 250VAC/80VDC
