CL21B334KBF4PNF

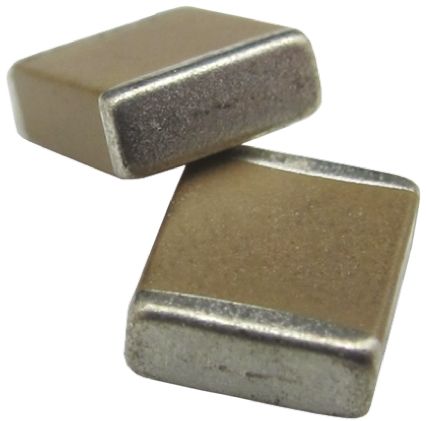

CL21B334KBF4PNF图片1
CL21B334KBF4PNF图片2
CL21B334KBF4PNF图片3
CL21B334KBF4PNF图片4
CL21B334KBF4PNF概述

Samsung 0805 MLCC seriesGeneral Multilayer Ceramic Chip CapacitorsHighly reliable tolerance and high speed automatic chip placement on PCBs Wide capacitance range Wide temperature compensation and voltage range: from C0G to Y5V and from 6.3V to 50V Highly reliable performance Highly resistant termination metal Applications include: HHP, DSC, DVC, LCD, TV, Memory Module, PDA, Game Machine; Tuner Product code C is suitable. For using special purpose like Military, Medical, Aviation, Automobile device should be following a special specification ### 0805 系列镍挡板终端覆镀锡 NiSn 层,应用包括移动电话、视频和调谐器设计,COG/NPO 是“温度补偿”的最常见配方,为 EIA I 类陶瓷材料,X7R、X5R 配方称为“温度稳定”陶瓷,属于 EIA II 类材料,Y5V、Z5U 配方适合有限温度范围内的一般用途,属于 EIA II 类材料;这些特征非常适合退耦应用。Y5V、Z5U 配方适合有限温度范围内的一般用途,属于 EIA II 类材料;这些特征非常适合退耦应用。

0805 X7R/Y5V MLCC series reels

### 0805 系列

镍挡层端接外覆镀锡 NiSn 层。应用包括移动电话、视频和调谐器设计,COG/NPO 是最受欢迎的“温度补偿”方案,EIA I 级陶瓷材料、X7R、X5R 方案称为“温度稳定”陶瓷且使用 EIA II 级材料;Y5V、Z5U 方案通用于有限温度范围,EIA II 级材料;这些特性十分适用于去耦应用。


欧时:
### Samsung 0805 MLCC seriesGeneral Multilayer Ceramic Chip CapacitorsHighly reliable tolerance and high speed automatic chip placement on PCBs Wide capacitance range Wide temperature compensation and voltage range: from C0G to Y5V and from 6.3V to 50V Highly reliable performance Highly resistant termination metal Applications include: HHP, DSC, DVC, LCD, TV, Memory Module, PDA, Game Machine; Tuner Product code C is suitable. For using special purpose like Military, Medical, Aviation, Automobile device should be following a special specification ### 0805 系列镍挡层端接外覆镀锡 NiSn 层。应用包括移动电话、视频和调谐器设计,COG/NPO 是最受欢迎的“温度补偿”方案,EIA I 级陶瓷材料、X7R、X5R 方案称为“温度稳定”陶瓷且使用 EIA II 级材料;Y5V、Z5U 方案通用于有限温度范围,EIA II 级材料;这些特性十分适用于去耦应用。


安富利:
Cap Ceramic 0.33uF 50V X7R 10% SMD 0805 125°C Embossed T/R


儒卓力:
**KC330nF0805 10%50V X7R ASTAG **


CL21B334KBF4PNF中文资料参数规格
技术参数

电容 330 nF

容差 ±10 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装 0805

外形尺寸

长度 2 mm

高度 1.25 mm

封装 0805

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±15 %

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

军工级 Yes

海关信息

ECCN代码 EAR99

数据手册

在线购买CL21B334KBF4PNF
型号: CL21B334KBF4PNF
制造商: Samsung 三星
描述:Samsung 0805 MLCC series General Multilayer Ceramic Chip Capacitors Highly reliable tolerance and high speed automatic chip placement on PCBs Wide capacitance range Wide temperature compensation and voltage range: from C0G to Y5V and from 6.3V to 50V Highly reliable performance Highly resistant termination metal Applications include: HHP, DSC, DVC, LCD, TV, Memory Module, PDA, Game Machine; Tuner Product code C is suitable. For using special purpose like Military, Medical, Aviation, Automobile device should be following a special specification ### 0805 系列 镍挡板终端覆镀锡 NiSn 层,应用包括移动电话、视频和调谐器设计,COG/NPO 是“温度补偿”的最常见配方,为 EIA I 类陶瓷材料,X7R、X5R 配方称为“温度稳定”陶瓷,属于 EIA II 类材料,Y5V、Z5U 配方适合有限温度范围内的一般用途,属于 EIA II 类材料;这些特征非常适合退耦应用。Y5V、Z5U 配方适合有限温度范围内的一般用途,属于 EIA II 类材料;这些特征非常适合退耦应用。
替代型号CL21B334KBF4PNF
型号/品牌 代替类型 替代型号对比

CL21B334KBF4PNF

Samsung 三星

当前型号

当前型号

CL21B334KBFNNNE

三星

类似代替

CL21B334KBF4PNF和CL21B334KBFNNNE的区别

CL21B334KBF4PNE

三星

类似代替

CL21B334KBF4PNF和CL21B334KBF4PNE的区别

CC0805KKX7R9BB334

国巨

功能相似

CL21B334KBF4PNF和CC0805KKX7R9BB334的区别
