Digital Audio Interface Receiver 1RX 28Pin SOIC

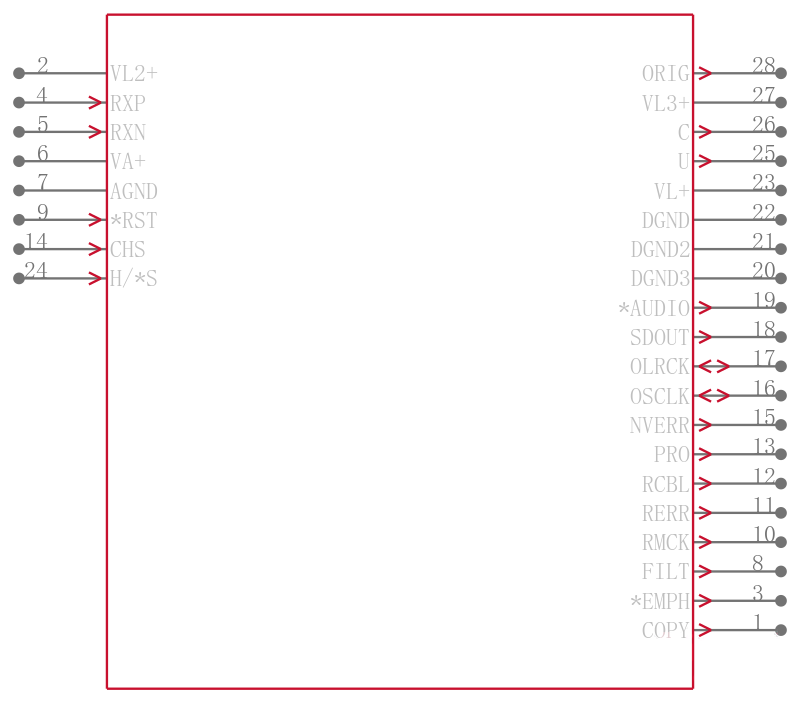

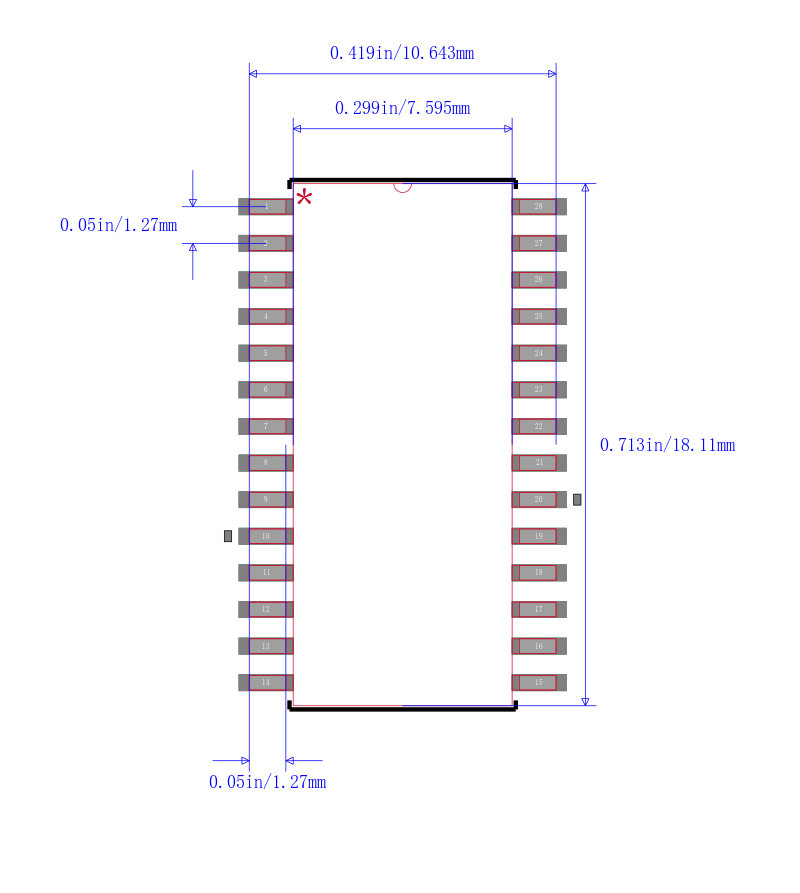

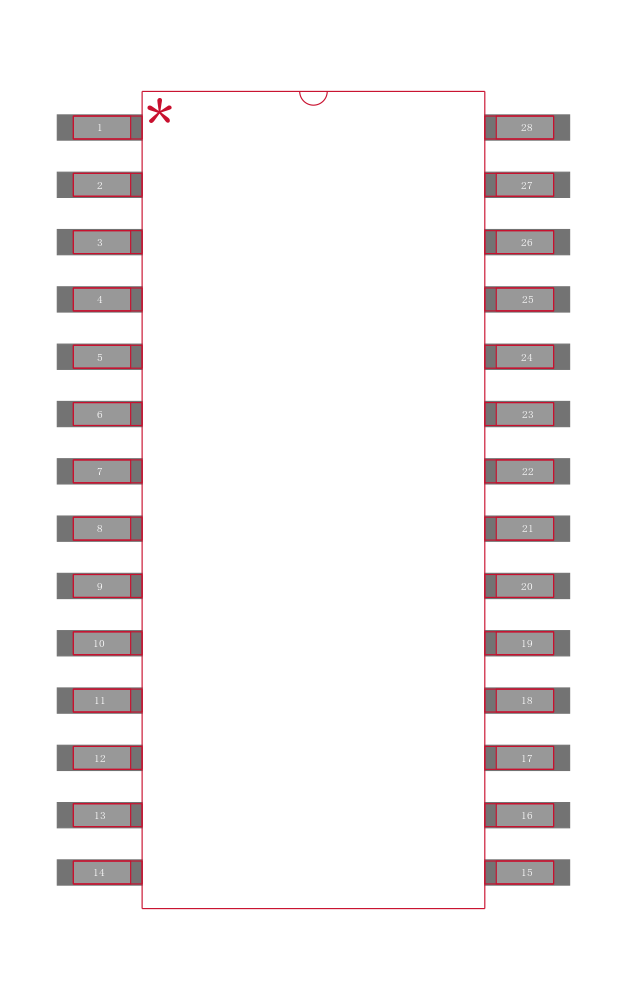

General Description
The CS8415A is a monolithic CMOS device which receives and decodes one of 7 channels of audio data according to the IEC60958, S/PDIF, EIAJ CP1201, or AES3. The CS8415A has a serial digital audio output port and comprehensive control ability through a 4-wire microcontroller port. Channel status and user data are assembled in block-sized buffers, making read access easy.
A low-jitter clock recoverymechanism yields a very clean recovered clock from the incoming AES3 stream.
Features
Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF-compatible Receiver
+5.0 V Analog Supply VA+
+3.3 V or +5.0 V Digital Interface VL+
7:1 S/PDIF Input MUX
Flexible 3-wire Serial Digital Output Port
8-kHz to 96-kHz Sample Frequency Range
Low-jitter Clock Recovery
Pin and Microcontroller Read Access to Channel Status and User Data
Microcontroller and Standalone Modes
Differential Cable Receiver
On-chip Channel Status and User Data Buffer Memories
Auto-detection of Compressed Audio Input Streams
Decodes CD Q Sub-Code
OMCK System Clock Mode
