C0603C680J1GACAUTO

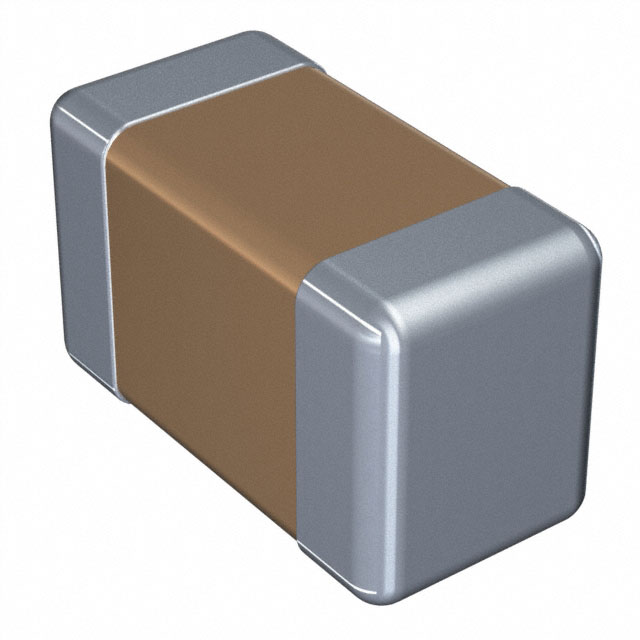

C0603C680J1GACAUTO图片1

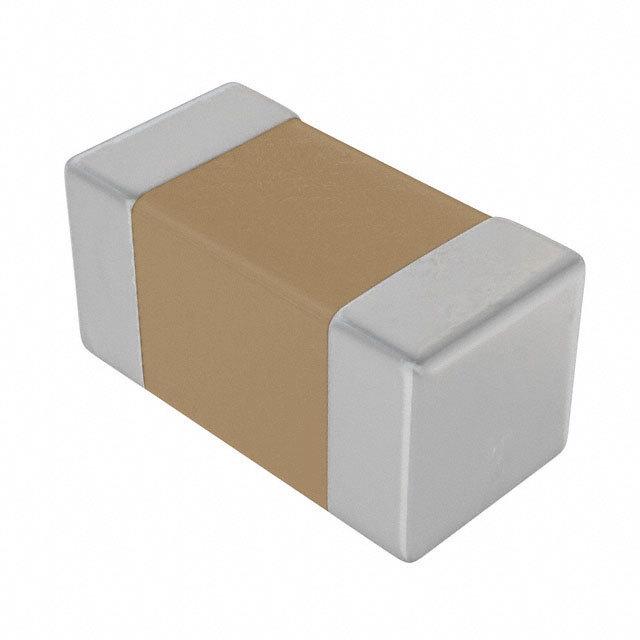

C0603C680J1GACAUTO图片2
C0603C680J1GACAUTO图片3
C0603C680J1GACAUTO图片4
C0603C680J1GACAUTO概述

多层陶瓷电容器, 表面贴装, 68 pF, 100 V, 0603 [1608 公制], ± 5%, C0G / NP0, C Series KEMET

±5% 100V 陶瓷器 C0G,NP0 0603(1608 公制)


得捷:
CAP CER 68PF 100V C0G/NP0 0603


立创商城:
68pF ±5% 100V


e络盟:
多层陶瓷电容器, 表面贴装, 68 pF, 100 V, 0603 [1608 公制], ± 5%, C0G / NP0, C Series KEMET


艾睿:
Cap Ceramic 68pF 100V C0G 5% Pad SMD 0603 125°C Automotive T/R


安富利:
Automotive Grade Series surface mount capacitors in C0G dielectric are suited for a variety of applications requiring proven, reliable performance in harsh environments. Whether under-hood or in-cabin, these devices emphasize the vital and robust nature of capacitors required for mission and safety critical automotive circuits. Stricter testing protocol and inspection criteria have been established for automotive grade products in recognition of potentially harsh environmental conditions. Automotive grade series capacitors meet the demanding Automotive Electronics Council"s AEC-Q200 qualification requirements.


C0603C680J1GACAUTO中文资料参数规格
技术参数

额定电压DC 100 V

电容 68 pF

容差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 100 V

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.60 mm

宽度 0.80 mm

高度 0.8 mm

封装公制 1608

封装 0603

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 汽车级

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买C0603C680J1GACAUTO
型号: C0603C680J1GACAUTO
描述:多层陶瓷电容器, 表面贴装, 68 pF, 100 V, 0603 [1608 公制], ± 5%, C0G / NP0, C Series KEMET
