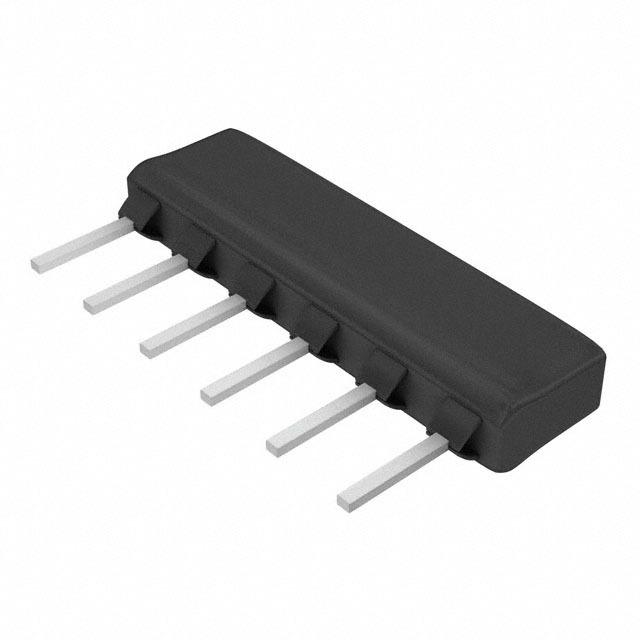

CSC06A014K70GEK

Res Thick Film NET 4.7KΩ 2% 0.75W3/4W ±100ppm/℃ BUS Conformal Coated 6Pin SIP Pin Thru-Hole Bulk

Thick Film Resistor Networks, Single-In-Line, Conformal Coated SIP. Isolated, bussed and dual terminator schematics available. Body height: “A" profile = 0.195" 4.95 mm and “B" profile = 0.295" 7.50 mm standard; custom “C" profile = 0.350" 8.89 mm also available. “A" profile standard in 4 thru 12 pins. Thick film resistive elements. Reduces total assembly costs. Resistor elements protected by tough epoxy conformal coating. Wide resistance range 10 Ohms to 2.2 Megohms. Available in bulk pack as standard; optional tube pack is also available. Meets EIA/ECA-CB23 rev. G whisker test requirements for class 1A products
