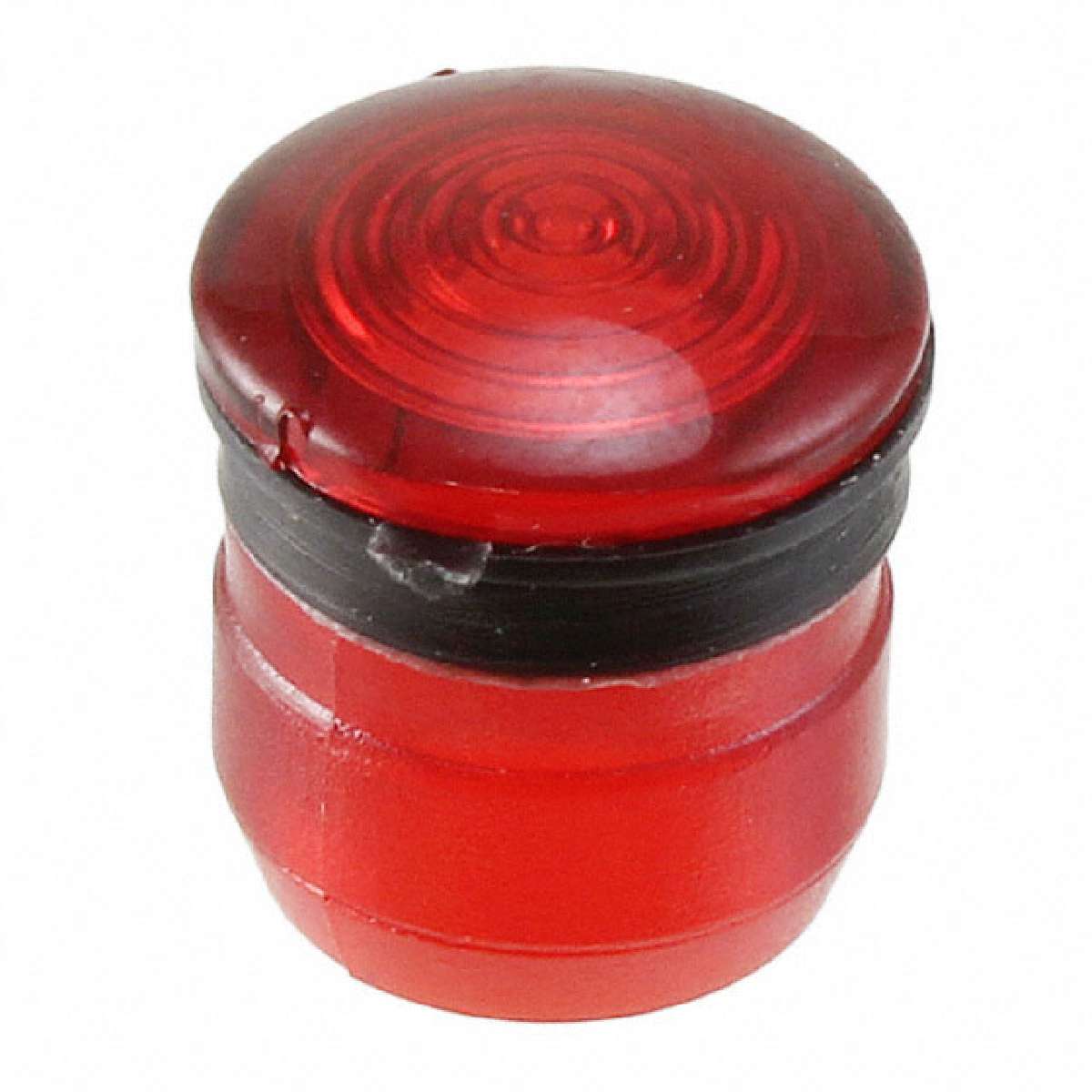

LED透镜 5mm Lo Prof Seal Red
**Features
**
* Lenses Constructed of Optical Quality U.L. Listed Polycarbonate**
**
* Lens Mounts Through Front of Panel and is Secured In Place with Retaining Ring or CONXRITE® Interconnect**
* **SMC 170 Lenses: Are Used with 3 mm Bi-Lead LEDs, Mount in a 0.171" 4.4 mm Hole, On 1⁄4" Centers and In Panels 1⁄32" to 3⁄32" Thick and Secures with RNG 132 Retaining Ring or CNXB CONXRITE® Interconnect**
**
* CMC and CML Series Lenses: Are Used with 5 mm Bi-Lead LEDs, Mount in a 0.281" 7.2 mm Hole, On 3⁄8" Centers, In Panels 1⁄32" to 1⁄4" Thick and Secures with RNG 268 Retaining Ring or CNXC CONXRITE® Interconnect**
**
* CMS 322 Lenses: Are Used with 5 mm Tri-Lead LEDs, Mount in a 0.281" 7.2 mm Hole, On 3⁄8" Centers, In Panels 1⁄32" to 1⁄8" Thick and Secures with RNG 268 Retaining Ring or CNXD CONXRITE® Interconnect**
**
* The CMS 322 Lens Seal Is a Medical Grade 40-Durometer Thermoplastic Material**
**
* Mounting Holes Should Be Deburred But Not Chamfered
