96 W 单输出
2.65A 23.4 ~ 36V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
LED DRVR CC AC/DC 23.4-36V 2.65A
艾睿:

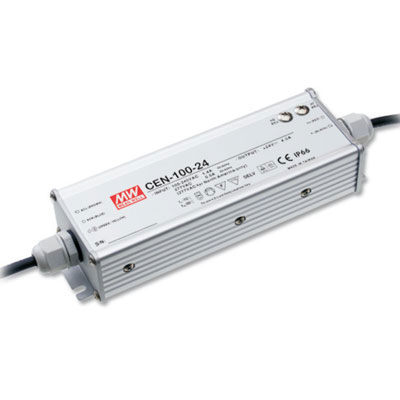

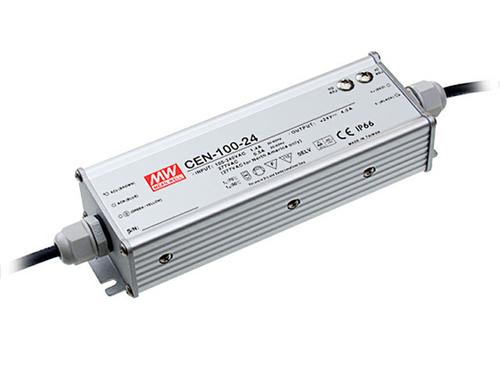

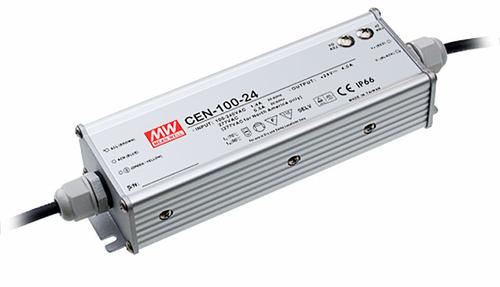

Supply the proper amount of power to an LED by using this CEN-100-36 LED power supply manufactured by Mean-Well USA, Inc. This part&s;s single output can handle a current up to 2650 mA. This part has a minimum operating temperature of -30 °C and a maximum of 70 °C. The CEN-100-36 part has a lead wire termination style.
Allied Electronics:
Power Supply; Enclosed, 96W Class 2 PFC, +36V2.65A
Jameco:
Enclosed Switching LED Power Supply PFC 36 Volts 2.65 Amps 95.4 Watts
安富利:
LED DRVR Module 1-CH IP66 36V 2.65A
富昌:
96 W 单输出
Chip1Stop:
AC/DC Power Supply Single-OUT 36V 2.65A 95.4W 5-Pin
TME:
Pwr sup.unit: switched-mode; LED; 95.4W; 36VDC; 33÷40VDC; 2.65A
MASTER:
AC/DC LED Power Supply - Const Curr - 95.4W - Fixed: 36 Vdc @ 2,650mA - Dim: No
Online Components:
AC/DC LED Power Supply 95.4W Single 5-Pin , Cannot use w/AC Wall Dimmer
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 95.4W - Fixed: 36 Vdc @ 2,650mA - Dim: No
CDI:
LED Driver CC, CV 95W 1720-2650mA Linear 23.4-36Vdc 90-295Vac Non-Dimming IP66 Metal Enclosure
额定功率 95 W
输出接口数 1
输出电压 36 V
输出电流 1.7 A
输出功率 95.4 W
隔离电压 3750 V
输入电压Max 295 VAC
输入电压Min 90 VAC
输出电流Max 2650 mA
输入电流Min 0.8 A
输出功率Max 95.4 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 90.295VAC, 127.417VDC
输入电压 90VAC ~ 295VAC
引脚数 5
封装 Metal Enclosure
高度 40.5 mm
封装 Metal Enclosure
重量 600 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
