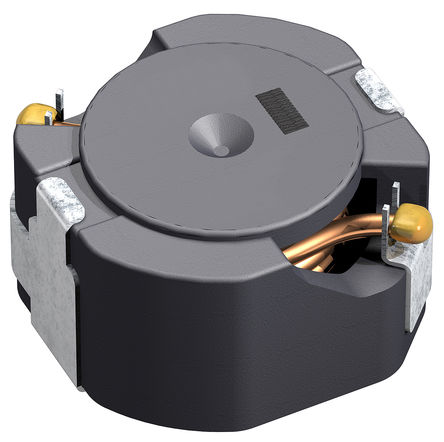

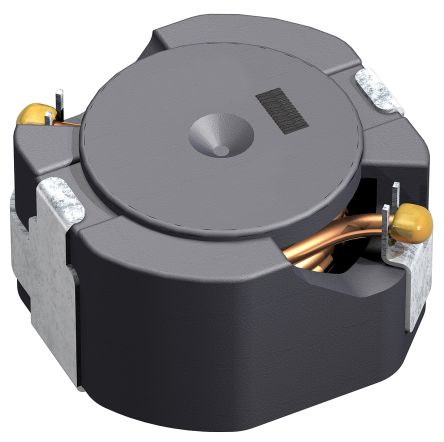

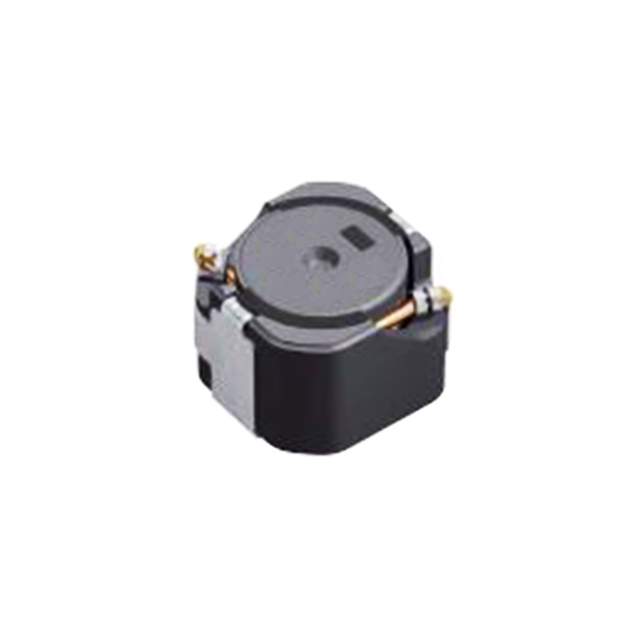

TDK CLF5030NIT-151M-D 表面贴装功率电感器, CLF-NI-D Series, 150 µH, 320 mA, 440 mA, 屏蔽, 1.29 ohm 新
CLF5030NI-D SMD Wound Ferrite Inductors
The CLF5030NI-D range from consists of magnetically shielded wirewound inductors. These wirewound inductors can be used at a wide temperature range from -55°C to +150°C including self-temperature rise. They are halogen free, compatible with lead free solder and are available in a range of E6 series inductance values.
### Product Application Information
With an AEC-Q200 qualification, these inductors are suitable for power circuits within automotive applications. Applications include meters, engine control modules, electronic power steering, headlights and ABS.
### 标准
AEC-Q200 Qualified
额定电流 320 mA
容差 ±20 %
电感 150 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC） ≤1.548 Ω
工作温度Max 150 ℃
工作温度Min -55 ℃
电阻DC Max 1.29 Ω
安装方式 Surface Mount
封装 5.3mm x 5mm x 2.7mm
长度 5.3 mm
高度 2.7 mm
封装 5.3mm x 5mm x 2.7mm
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, 电源管理, 便携式器材, Consumer Electronics, Portable Devices, Industrial, Power Management, Automotive, 消费电子产品, 工业, Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC版本 2016/06/20
