CMB4/8

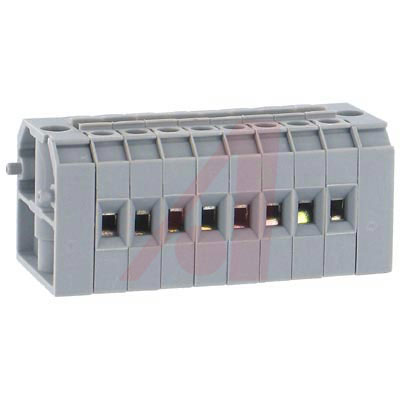

CMB4/8图片1
CMB4/8图片2
CMB4/8图片3
CMB4/8图片4
CMB4/8概述

Conn; Term Blk; 8; 2 ScrewClamps; Tapped Hole for Cross Conn; 22-10AWG; 35A; 00V

Terminal Block, 2 Screw Clamp & 1 Tapped Hole for Cross Connection, 22-12 AWG, 300 V, 25 A

Compact and convenient to use where space is a constraint. Cost effective sectional design allows for changing requirements. Order preassembled or easily snap together single pole components to form multipole assemblies. Mounting sections snap onto ends of assembly or between terminal block components to provide additional mounting points. CMB4 assemblies feature an internal bussing provision to distribute power selectively or throughout the assembly. Please refer to page

300 V, 35 A, 22-10 AWG.
.
* Pole Spacing:** 6 mm 0.236". 27 mm 1.06" wide × 28 mm 1.10" high.

* High Density, Terminations Per Foot

* Screw-Cage Clamp or Spring Clamp

* Accepts Standard Marking Tags

CMB4/8中文资料参数规格
技术参数

触点数 8

额定电压DC 300 V

额定电流 35 A

排数 2

电路数 8

针脚数 8

额定电流Max 35 A

额定电压Max 300 V

额定电压 300 V

封装参数

安装方式 Screw, Panel

外形尺寸

长度 27 mm

宽度 62 mm

高度 28 mm

物理参数

外壳颜色 Gray

颜色 Gray

绝缘材质 Nylon 6/6

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买CMB4/8
型号: CMB4/8
制造商: Altech
描述:Conn; Term Blk; 8; 2 ScrewClamps; Tapped Hole for Cross Conn; 22-10AWG; 35A; 00V
