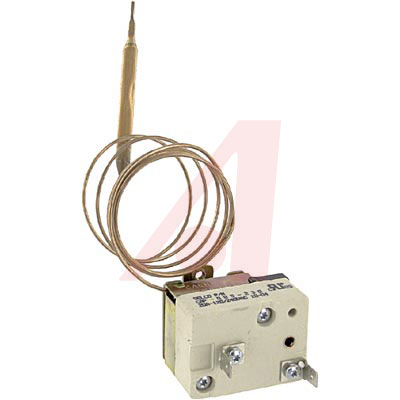

CAP-140-752-Z

Thermostat; Bulb/Capillary; 140-752deg.; Adj. set point; SPST, UL 240VAC, 20A

**CAP Series — Automatic Reset** These controls open on rise and are adjustable with knob bezels and screws. They offer a very close differential. When temperature rises the bulb fluid expands via a capillary tube to an expandable diaphragm within the remote thermostat case activating an electrical switch at the thermostat set point. ** Specifications: Material:** Copper. **Capillary Length:** 36". **Examples of Applications Include:** Cooking warmers and ovens, fryers, heaters, boilers, spas and control chambers. **Electrical Ratings.** 120/240 VAC, 20 amps, 1⁄4 horsepower, 125 pilot duty VA, 100,000 cycles.

* Approvals: CSA and UL Recognized
