CST306-2A

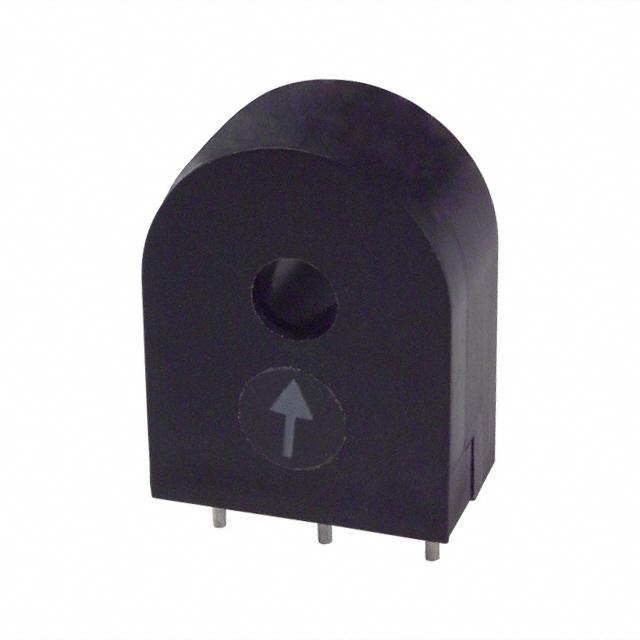

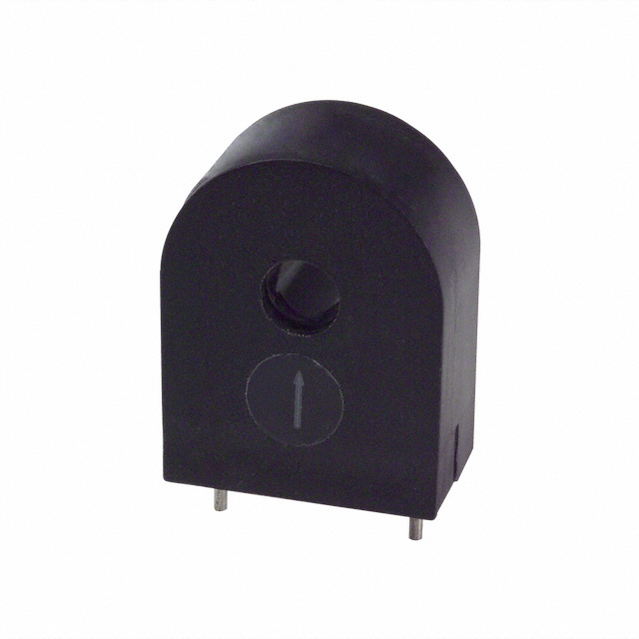

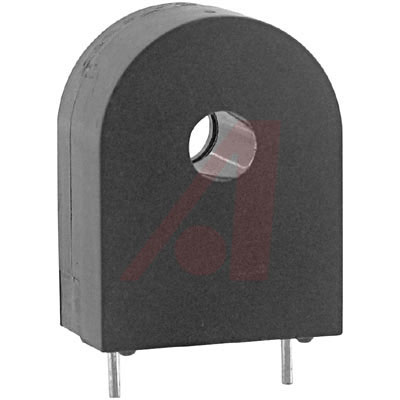

TRIAD MAGNETICS CST306-2A Current Sensing Transformer, High Frequency, 100, 14mH, 25A, Through Hole

Designed for switching power supply applications, TRIAD current sense inductors from TRIAD Magnetics are used to detect the current passing through a conductor. These inductors are very reliable and operate effectively over the frequency range of 20 kHz-200 kHz. They are constructed of UL rated 130°C materials.

* Derate ET Product by 32% for 50 kHz, 52% for 100 kHz and 50% for Unidirectional Operation

* Rated Primary Current Renders Approximately 40°C Temperature Rise

* CST-206 Models Have Maximum Recommended Terminating Resistance of 1 Ohm Per Turn

* Made in China
