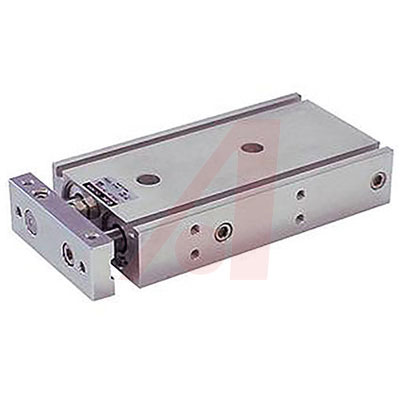

Cylinder, Air, Dual Rod, Guided, 25mm Bore, 15mm Stroke
CXS slide units are intended to replace a custom assembly consisting of many components with one integrated and reliable component. CX offers excellent value when the accuracy and moment capabilities of the MX slide are not required. The CX has very good non-rotating accuracy and intermediate to high loading capabilities. The twin piston design provides twice the thrust for a given bore size. Dual-Rod Cylinder with guide function for pick-and-place applications. Series CXS is compact and has accurate non-rotating specification.
**Features:**
* Dual Piston Design Which Provides Twice the Thrust of Conventional Actuators
* Non-Rotating Accuracy: ±0.1°, Perfect for the Majority of Automation Requirements
* Slide Bearings Are Standard
* Standard Stroke Retraction Adjusters
* Adjustable Stroke Range: 0 to 5 mm
* 3-Side Work Piece Mounting
* Operating Pressure: 14.5-101.5 psi 10-15 mm Bore, 7.2-101.5 psi 20-25 mm Bore
